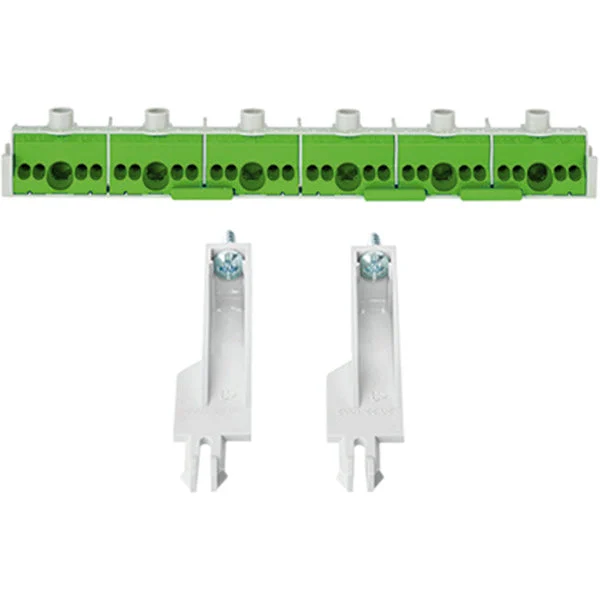

Hensel PE Clamp 6×25-24x4mm Green Screw Attachment – FC PE 30

The Hensel Mi-distributor terminal strip is multicolored and designed with a single pole. It features pin and screw connections, with 30 clamp positions per pole. This unit is designed for direct mounting and can accommodate a conductor cross-section ranging from 1.5-25mm². The FIXCONNECT-PE-clamp FC PE 30 comes with a screw attachment, and is capable of holding 6 connectors up to 25 mm², as well as 24 connectors up to 4 mm².

Specifications

Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 1.5 mm² to 25 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 6 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 1.5 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²) : 1.5 mm² to 25 mm²
Rated current In (A) : 101
Rated voltage (V) : 690
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Plug-in connection
Number of poles : 1
Number of clamp positions per pole : 30
Mounting method : Direct mounting
Material insulation body : Thermoplastic
Operating temperature (°C) : 40 °C to 40 °C
Inflammability class of insulation material according to with UL94 : Other
Closing plate required : No
Color : Multi-colored
