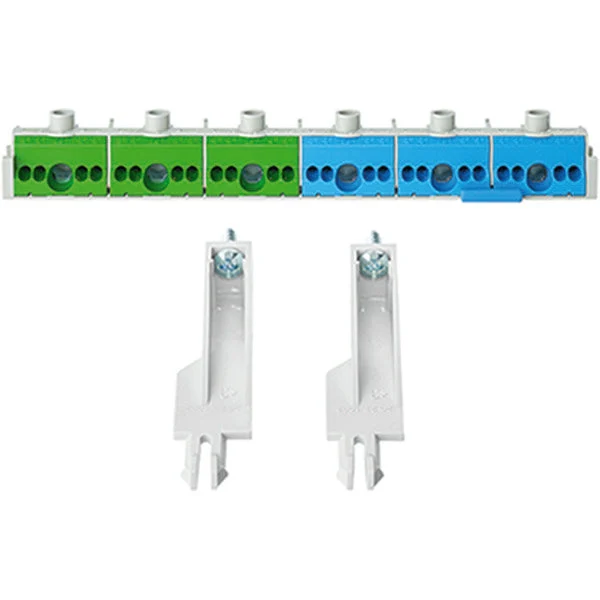

The Hensel Mi distributor terminal strip features a multicolor design with 2 poles. It has a plug-in electrical connection and offers 15 clamping positions per pole, in addition to a screw connection. The strip allows for a direct mount and can accommodate a cord cross-section size of 1.5 – 25mm². The FIXCONNECT PE and N terminal, allows for three PE/N at 25 mm² and twelve at 4 mm², crafted with copper. The N terminal can be split for 2 different potentials.
Specifications
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 1.5 mm² to 25 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 6 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 1.5 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²) : 1.5 mm² to 25 mm²
Rated current In (A) : 75
Rated voltage (V) : 690
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Plug-in connection
Number of poles : 2
Number of clamp positions per pole : 15
Mounting method : Direct mounting
Material insulation body : Thermoplastic
Operating temperature (°C) : 40 °C to 40 °C
Inflammability class of insulation material according to with UL94 : Other
Closing plate required : No
Color : Multi-colored
