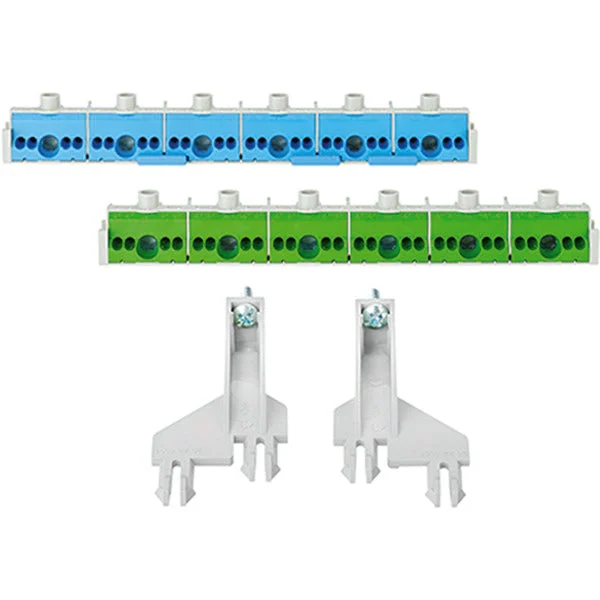

The Hensel Mi-distributors terminal block, also known as the FIXCONNECT-PE- and N-clamp, is suitable for PE/N 6 x 25 mm², 24 x 4 mm², Cu. It is characterized by its N-divisible feature, which allows it to accommodate up to four different potentials. Composed of copper, this terminal block is designed for diversified and exceptional performance in a variety of electrical setups.
Specifications
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 1.5 mm² to 25 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 6 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 1.5 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²) : 1.5 mm² to 25 mm²
Rated current In (A) : 75
Rated voltage (V) : 690
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Plug-in connection
Number of poles : 2
Number of clamp positions per pole : 30
Mounting method : Direct mounting
Material insulation body : Thermoplastic
Operating temperature (°C) : 40 °C to 40 °C
Inflammability class of insulation material according to with UL94 : Other
Closing plate required : No
Color : Multi-colored
