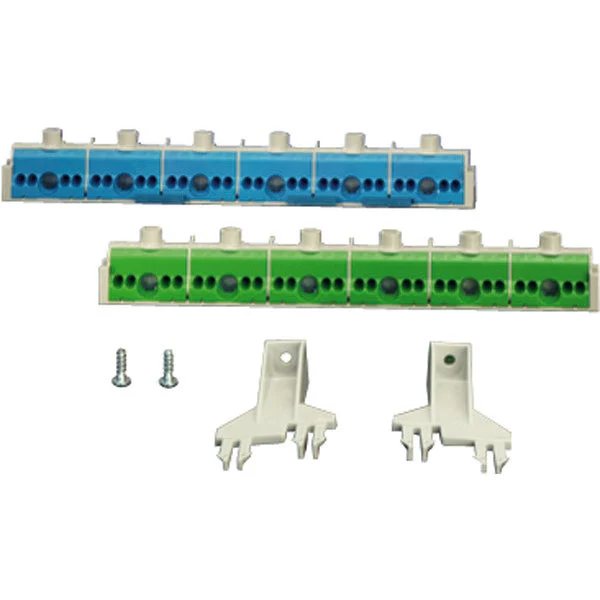

Hensel PE and N Clamp – 2x6x25+24x4mm – for 3×12 TE – FP FC 36

The Hensel ENYSTAR terminal block is constructed from multicolored plastic, with dimensions of 12x225mm. It is designed for a cross section of extra flexible wire of 25mm², solid wire of 25mm², and flexible wire with a sleeve of 25mm². It features a two-pole design, with a plug-in type electrical connection. It accommodates 30 clamp positions per pole. Additionally, it includes a PE and N-clamp for each PE/N 6×25 mm² and 24×4 mm² for the ENYSTAR case. The item utilizes FIXCONNECT plug-in clamp technology for copper wiring and the N can be split for up to four different potentials.

Specifications

Explosion-tested version ‘Ex e’ : No
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 1.5 mm² to 25 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 6 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 1.5 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²) : 1.5 mm² to 25 mm²
Rated current In (A) : 75
Rated voltage (V) : 690
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Plug-in connection
Number of poles : 2
Number of clamp positions per pole : 30
Mounting method : Direct mounting
Material insulation body : Thermoplastic
Operating temperature (°C) : 40 °C to 40 °C
Inflammability class of insulation material according to with UL94 : Other
Closing plate required : No
Color : Multi-colored
