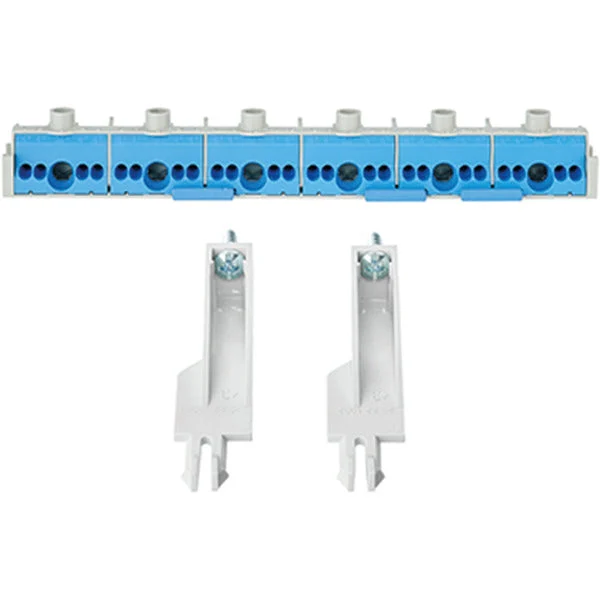

The Hensel Mi-distributor terminal block is a FIXCONNECT-N terminal for N 6 x 25 mm², 24 x 4 mm², made out of copper. It has a divisible N and is suitable for up to 4 different potentials. This device can simplify the wiring process by providing a secure and organized way to distribute power from a single source to multiple devices. With its robust construction, it ensures exceptional long-term performance across a range of applications. Highly reliable and easy to use, it offers a practical solution for managing electrical connections.
Specifications
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 1.5 mm² to 25 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 6 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 1.5 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²) : 1.5 mm² to 25 mm²
Rated current In (A) : 101
Rated voltage (V) : 690
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Plug-in connection
Number of poles : 1
Number of clamp positions per pole : 30
Mounting method : Direct mounting
Material insulation body : Thermoplastic
Operating temperature (°C) : 40 °C to 40 °C
Inflammability class of insulation material according to with UL94 : Other
Closing plate required : No
Color : Multi-colored
