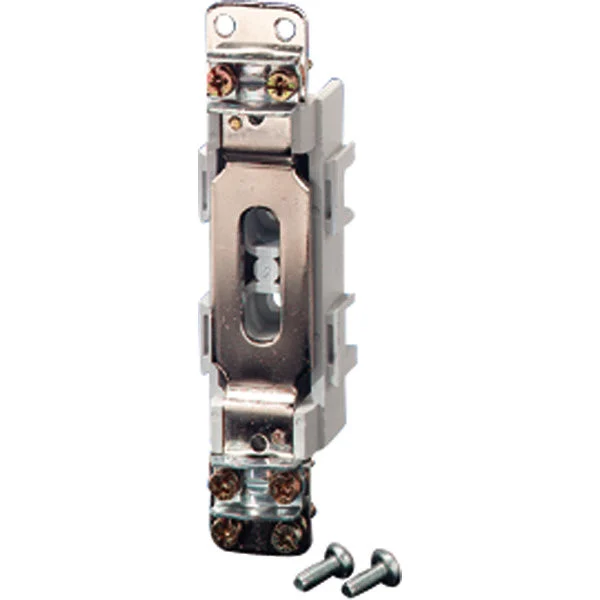

Hensel MI NK 2 Connection Clamp 160A 1x70mm 2x35mm – Mi NK 2

The Hensel Mi-distributor terminal strip is an insulated low-voltage switchgear combination housed in a case conforming to IEC 61439-2, designed for wall mounting. The case is suitable for outdoor placement, designed to withstand the potential impact of weather on the operating equipment. The case and cover are made from impact-resistant polycarbonate, free from halogens and silicon and in RAL 7035 color. The cover is transparent, featuring quick-release fasteners for tool operation. Its flame-retardant behavior is in line with DIN VDE 0471 Part 2 – Glow wire test 960°C. The case has a maximum water absorption of 10mg in accordance to DIN 53473. It offers double insulation as a protective measure (class II). The model includes an N-terminal Mi NK 2, suitable for Mi 4250, Mi 5250, Mi 7256, Mi 7456, Mi 7401, and can handle copper lines of 2×70 mm².

Specifications

Explosion-tested version ‘Ex e’ : No
Connectable conductor cross section solid-core (mm²) : 4 mm² to 70 mm²
Connectable conductor cross section multi-wired (mm²) : 4 mm² to 70 mm²
Rated current In (A) : 160
Rated voltage (V) : 690
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Screw connection
Number of poles : 1
Number of clamp positions per pole : 3
Mounting method : Direct mounting
Material insulation body : Thermoplastic
Operating temperature (°C) : 55 °C to 55 °C
Inflammability class of insulation material according to with UL94 : Other
Closing plate required : No
Color : Other
Transparent : No
