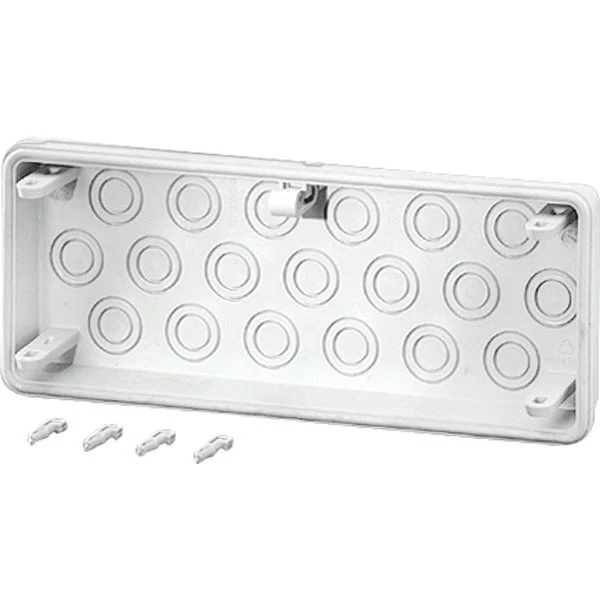

This is a Hensel Mi-distributor accessory input plate with a casing/podium design. Made from plastic, it measures 100x300x25mm and is equipped with a cable gland and knockout ports. The surface is untreated with no protective layer. It comes with 19 M16/25 entry points. The low-voltage switchgear combination is housed in a cabinet that complies with IEC 61439-2 for wall mounting. The cabinets are suitable for outdoor use with consideration for weather effects on equipment. They are made from impact-resistant polycarbonate that is both halogen and silicone-free. The color is RAL 7035 with a transparent lid that includes quick release for tool operation. Fire behavior meets DIN VDE 0471 Part 2 – Glow Wire Test 960 °C, and maximum water absorption is 10 mg per DIN 53473. Double insulated for protection (class II). It also includes a flange Mi FM 25 for wall housing 300 mm.
Specifications
Model : Cable screw gland
Width (mm) : 300
Height (mm) : 25
Depth (mm) : 100
Material : Plastic
Surface protection : Untreated
Pre-stamping : Yes
