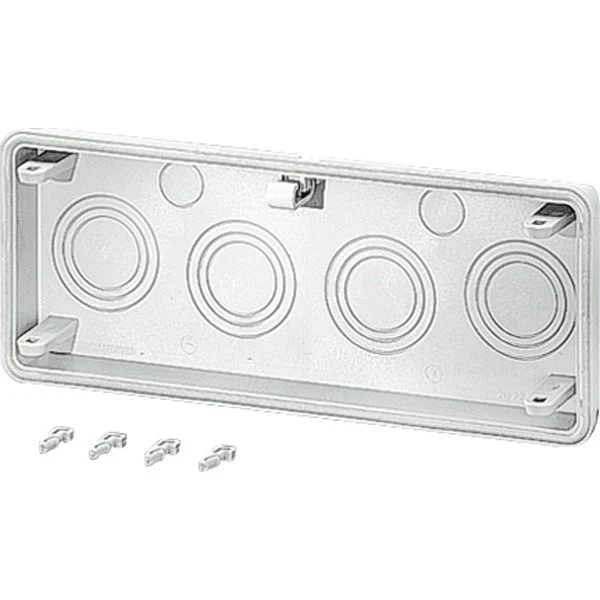

Hensel MI FM 50 Attachment Flange With Breakout Ports – Mi FM 50

The Hensel Mi distributers are accompanied by accessories such as an input panel spare cabinet/lectern, plastic, dimensions (dxbxh) 100x300x25mm, design cable gland, breakout ports, surface protection none (untreated), 2xM20. 4xM32/40/50. This insulated low-voltage switchgear combination complies with IEC 61439-2 for wall assembly. Suitable for outdoor installation, it takes account of the effect of weather conditions on the operating resources. The cabinet parts and lid are made of impact-resistant polycarbonate, halogen and silicone-free, in RAL 7035 color, with a transparent lid featuring quick locks for tool operation. Its fire behavior is in line with DIN VDE 0471 Part 2 – Glow wire test 960 °C. Maximum water absorption is 10 mg according to DIN 53473. The protection measure is double insulated (protection class II). It includes a Mi FM 50 flange, 2 x M 20, 4 x M 32/40/50 for a 300 mm housing wall.

Specifications

Model : Cable screw gland
Width (mm) : 300
Height (mm) : 25
Depth (mm) : 100
Material : Plastic
Surface protection : Untreated
Pre-stamping : Yes
