Hensel MI FM 40 Plastic Flange 2xM25/32 5xM32/40 WM2 300mm – Mi FM 40

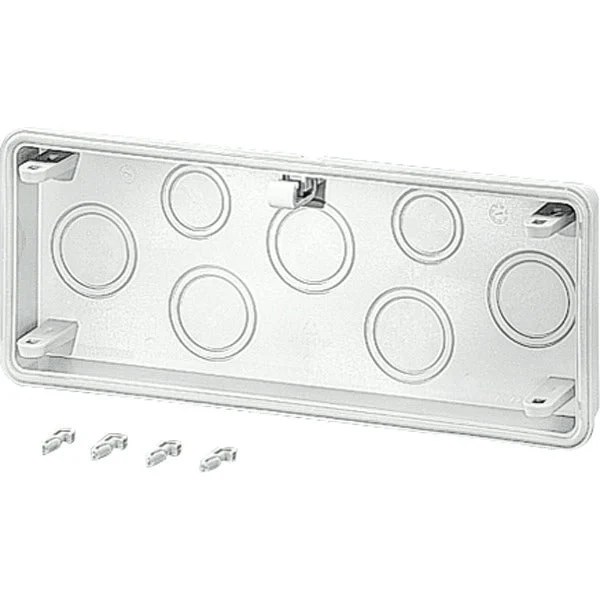

This Hensel Mi-distributor accessory is made of plastic, measuring 100x300x25mm, with a cable gland design and breakout ports. It has no surface protection (untreated) and features 2xM25/32. 5xM32/40. The combination of insulated low-voltage switchgear conforms to IEC 61439-2 and is suitable for wall mounting and outdoor placement, considering weather impact. It consists of impact-resistant polycarbonate parts and lid, free of halogens and silicones, colored RAL 7035, and a transparent lid with quick-release fastenings. It meets the glow-wire test criteria of DIN VDE 0471 Part 2 at 960°C and allows a maximum water absorption of 10 mg as per DIN 53473. The protection measure is double-insulated (protection class II). It includes the Mi FM 40 flange, 2xM25/32, 5xM32/40, suitable for a housing wall of 300mm.

Specifications

Model : Cable screw gland
Width (mm) : 300
Height (mm) : 25
Depth (mm) : 100
Material : Plastic
Surface protection : Untreated
Pre-stamping : Yes
