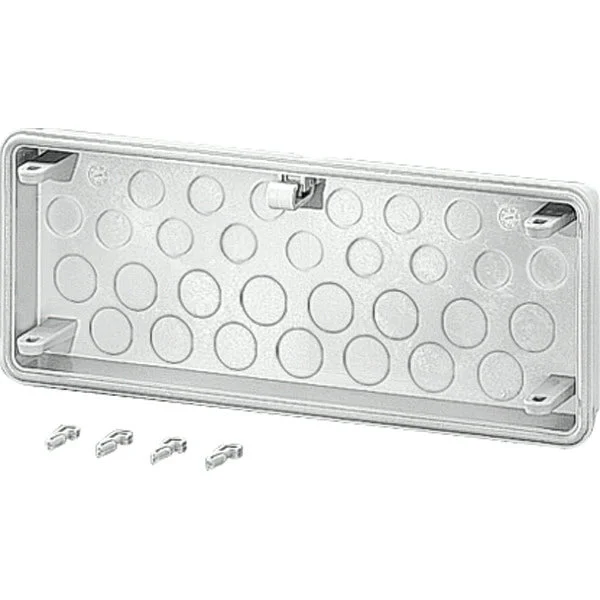

This is a Hensel Mi distribution accessory input plate for box/desk fixtures, composed of plastic and sized 100x300x25mm. It features a cable gland design, breakout ports and lacks surface protection. The item also has 15xM16 and 15xM20 dimensions. It is an insulated low-voltage switchgear, built into a box in accordance with IEC 61439-2 for wall mounting. It is suitable for outdoor installations and requires consideration of weather impact on operating resources. The box parts and lid are made from impact-resistant polycarbonate, halogen and silicone-free, and in RAL 7035 color. It has a quick-release transparent lid for tool operation. The combustion behavior follows DIN VDE 0471 Part 2 loop wire test 960 °C with a maximum water absorption of 10 mg in accordance with DIN 53473. The product is double-insulated, marking it as part of protection class II.
Specifications
Model : Cable screw gland
Width (mm) : 300
Height (mm) : 25
Depth (mm) : 100
Material : Plastic
Surface protection : Untreated
Pre-stamping : Yes
