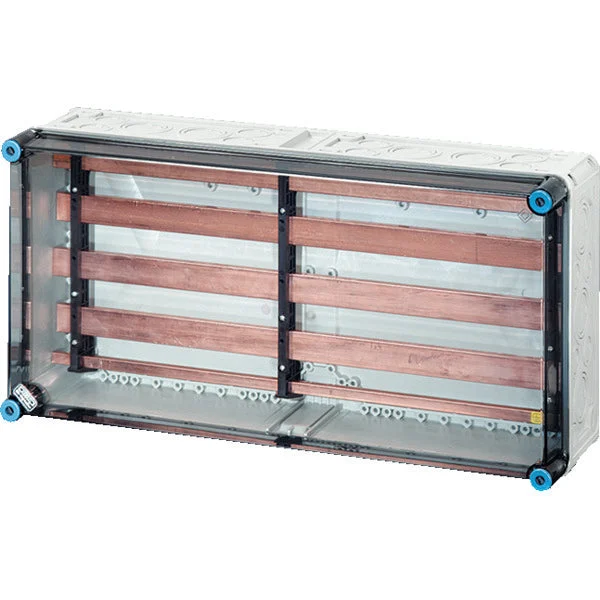

Hensel Mi Dividers Rail Cabinet – MI 6456

Housing for construction of power, switch combinations up to 630 A or as individual housing. Insulated from high-quality polycarbonate. Wall penetrations with large openings for electrical connection of the enclosures to each other. Cable entry on all enclosure walls via metric preforms or mounting flanges. Housing for wall mounting also via outdoor loops or with mounting rails. Housing with collector rails, without device, without terminals. Lid latches for tool operation.

Specifications

Equipped with busbar : Yes
Rated current rail system (A) : 630
Material : Plastic
Height (mm) : 300
Width (mm) : 600
Depth (mm) : 170
Extension possible : Yes
Mounting method : Surface mounted (plaster)
With transparent cover : Yes
Short-circuit breaking capacity (Icw) (kA) : 45
Number of poles : 5
Degree of protection (IP) : IP65
