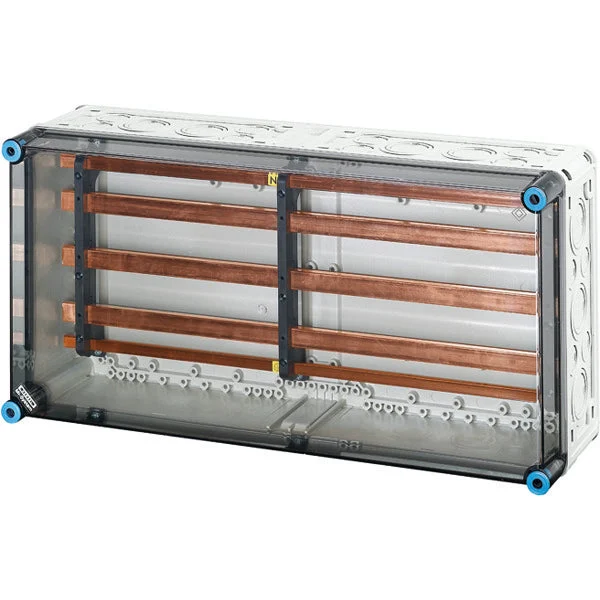

Hensel Mi distribution busbar cabinet, (WxDxH) 600x170x300mm, with busbar system, nom. (measuring) current busbar system 400A, degree of protection (IP) IP65, attachment option, 5 poles, imax power supply central 400A, imax power supply one-side 400A, cabinet/pass plan 2, short-circuit resistance (Icw) 30kA, housing plastic.
Specifications
Equipped with busbar : Yes
Rated current rail system (A) : 400
Material : Plastic
Height (mm) : 300
Width (mm) : 600
Depth (mm) : 170
Extension possible : Yes
Mounting method : Surface mounted (plaster)
With transparent cover : Yes
Short-circuit breaking capacity (Icw) (kA) : 30
Number of poles : 5
Degree of protection (IP) : IP65
