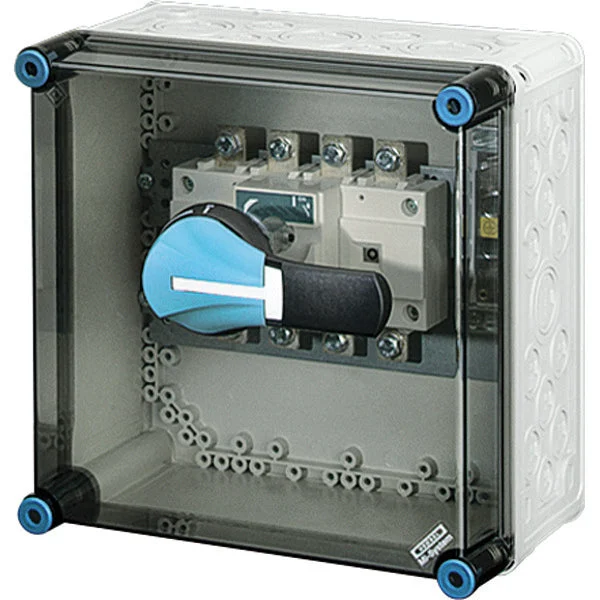

Hensel Mi dividers switch-disconnector, design as main switch, max. Rated operating voltage Ue at A 500V, operating voltage (measurement voltage) 500V, rated continuous current Iu 160A, rated continuous current, AC-21, 400 V 160A, rated power at AC-3, 400 V 80kW, permissible short-duration current Icw 7kA.
Specifications
Version as main switch : Yes
Version as maintenance-/service switch : No
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Max. rated operation voltage Ue AC (V) : 500
Rated operating voltage (V) : 500 V to 500 V
Rated permanent current Iu (A) : 160
Rated permanent current at AC-21, 400 V (A) : 160
Rated operation power at AC-3, 400 V (kW) : 80
Rated short-time withstand current lcw (kA) : 7
Rated operation power at AC-23, 400 V (kW) : 80
Switching power at 400 V (kW) : 80
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Complete device in housing
Suitable for floor mounting : No
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Color control element : Black
Type of control element : Long turning handle
Interlockable : Yes
Type of electrical connection of main circuit : Clamp bracket
Degree of protection (IP), front side : IP65
