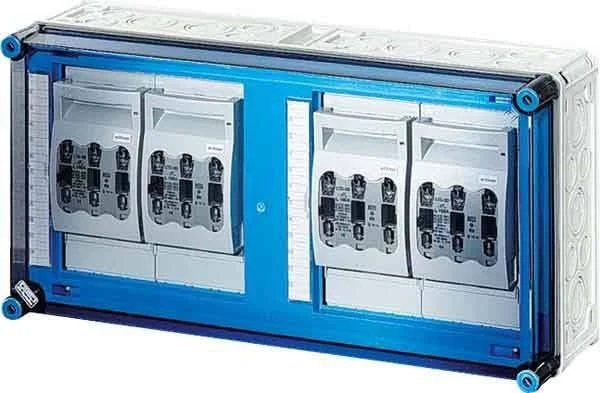

Hensel Mi Dividers Cartridge Load Separator – MI 6466

Housing for construction of power, switch combinations up to 630 A or as individual housing. Insulated from high-quality polycarbonate. Wall penetrations with large openings for electrical connection of the enclosures to each other. Cable entry on all enclosure walls via metric preforms or mounting flanges. Housing for wall mounting also via outdoor loops or with mounting rails. Enclosure with safety load break switch NH 00, 3, pole, according to IEC 60947, 3, on busbars. Without cable clips. With PE, and N, terminals and touch protection. Connection direction adjustable.

Specifications

Equipment fuse switch disconnector housing : With safety switch disconnector
Number of poles : 3
Rated operation current Ie (A) : 125
Max. rated operation voltage Ue AC (V) : 800
Rated insulation voltage Ui (V) : 690
Construction size fuse inserts : NH00
With error protection : No
Height of housing (mm) : 300
Degree of protection (IP) : IP65
