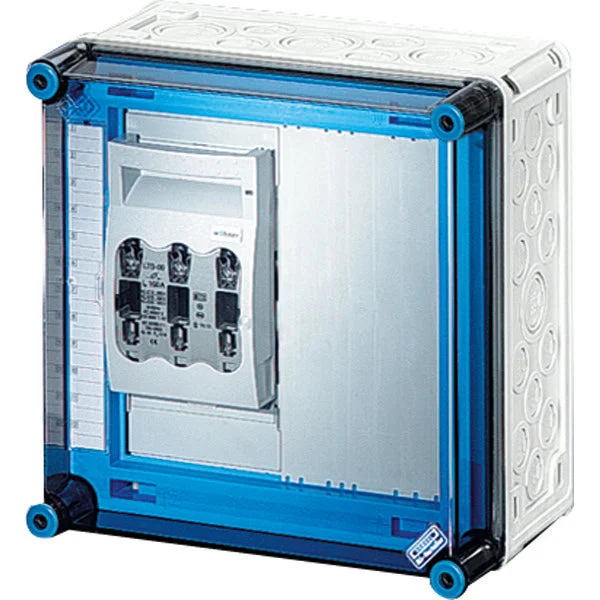

Hensel Mi Dividers Cartridge Load Separator – MI 6226

Hensel Mi dividers pattern load breaker, construction size fuse inserts NH00, neutral terminal, equipment pattern load breaker with safety load shake, in cabinet, rated operating current Ie 125A, 3 poles, degree of protection (IP) IP65, top connection, housing width 300mm, contact breaker single.

Specifications

Equipment fuse switch disconnector housing : With safety switch disconnector
Number of poles : 3
Rated operation current Ie (A) : 125
Max. rated operation voltage Ue AC (V) : 800
Rated insulation voltage Ui (V) : 690
Construction size fuse inserts : NH00
With error protection : No
Housing width (mm) : 300
Height of housing (mm) : 300
Degree of protection (IP) : IP65
