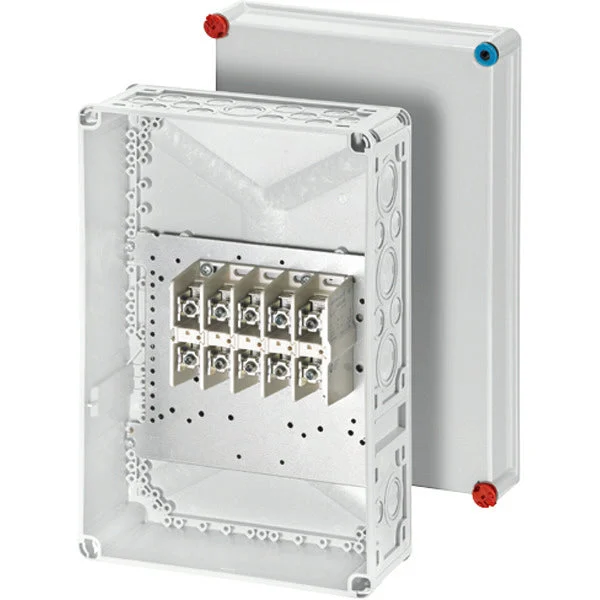

Hensel K surface mount box wall/ceiling, plastic, gray, (LxWxH) 450x300x170mm, depth 170mm, wall/ceiling mounting, equipped with clamp, rectangular, max. Conductor cross-section 150mm², nominal insulation voltage Ui 690V, for tube diameter other, type of housing penetration breakout port, 16 entries.
Specifications
Max. conductor cross section (mm²) : 150
Shape : Rectangular
Mounting method : Wall-/ceiling mounting
For tube diameter : Other
Inlet from the rear : No
Length (mm) : 450
Width (mm) : 300
Depth (mm) : 170
Tackable : No
Number of inlets : 16
Type of housing feed-through : Preembossing
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Grey
Degree of protection (IP) : IP65
Cover model : Other
Cover attachment : Screwed
Castable : No
With casting compound : No
Sealable : Yes
Rated insulation voltage Ui (V) : 690
Circuit integrity : None
With screening : No
Weatherproof : No
Working temperature (°C) : -25 °C to 40 °C
Explosion-tested version : No
For Ex-zone gas : None
For Ex-Zone dust : None
