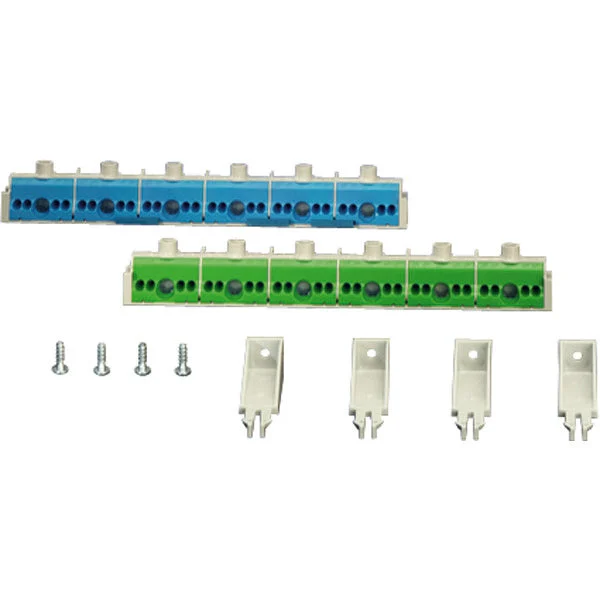

The Hensel ENYSTAR terminal block is made of multicolored plastic with dimensions 12x225mm. It has an additional flexible cross-section of 25mm², a solid wire cross-section of 25mm², and a flexible cross-section with sleeve of 25mm². The block has 2 poles with a plug connection type for electrical connection, and 30 clamp positions per pole. The terminal block also includes a PE and N-clamp, accommodating 6 x 25 mm² per PE/N and 24 x 4 mm² for the ENYSTAR box. It utilizes FIXCONNECT plug-in terminal technology for copper line and the N is separable, up to 4 different potentials.
Specifications
Explosion-tested version ‘Ex e’ : No
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 1.5 mm² to 25 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : 6 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 1.5 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²) : 1.5 mm² to 25 mm²
Rated current In (A) : 75
Rated voltage (V) : 690
Type of electrical connection 1 : Screw connection
Type of electrical connection 2 : Plug-in connection
Number of poles : 2
Number of clamp positions per pole : 30
Mounting method : Direct mounting
Material insulation body : Thermoplastic
Operating temperature (°C) : 40 °C to 40 °C
Inflammability class of insulation material according to with UL94 : Other
Closing plate required : No
Color : Multi-colored
