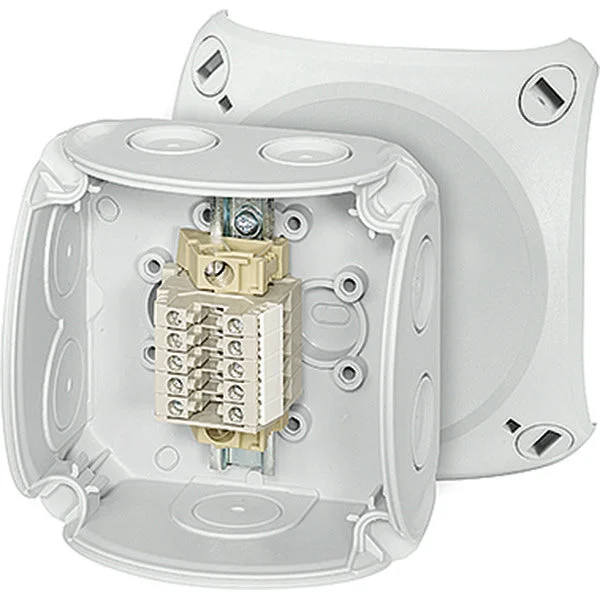

Suitable for indoor and outdoor installation, this Hensel junction box is protected from the weather thanks to its IP66 protection rating. With 5-pole terminal strip, per terminal 2 x 0.5-2.5 mm² f, 2 x 0.5-4 mm² sol or 2 x 1.5-2.5 mm² s. The cable box also features integrated elastic sealing membranes, which can be removed for cable entry via cable glands. Furthermore, the cable box has one cable entry in the bottom, sealing range ø 6.0-13.0 mm.
Specifications
Max. conductor cross section (mm²) : 2.5
Shape : Square
Mounting method : Wall-/ceiling mounting
For tube diameter : Other
Inlet from the rear : Yes
Length (mm) : 93
Width (mm) : 93
Depth (mm) : 62
Tackable : No
Number of inlets : 7
Type of housing feed-through : Other
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Grey
Degree of protection (IP) : IP66
Cover model : Other
Cover attachment : Screwed
Castable : No
With casting compound : No
Sealable : Yes
Rated insulation voltage Ui (V) : 500
Circuit integrity : None
With screening : No
Weatherproof : No
Working temperature (°C) : -25 °C to 40 °C
Explosion-tested version : No
For Ex-zone gas : None
For Ex-Zone dust : None
