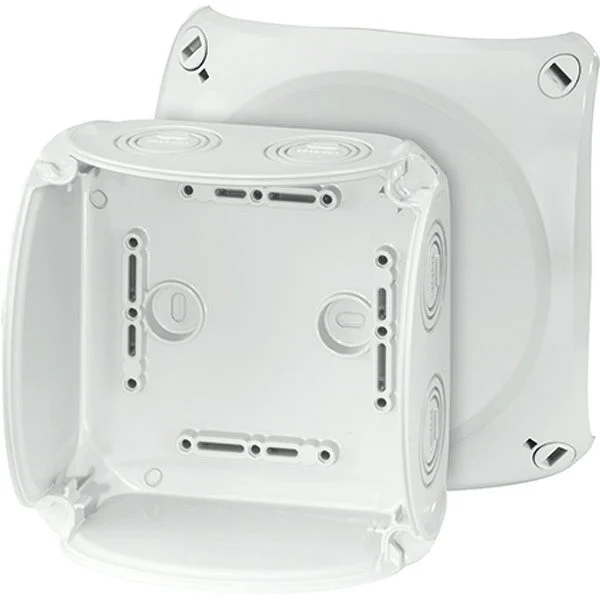

Hensel ENYCASE Surface mounted Wall/Ceiling Box – KF 0600 G

Hensel ENYCASE KF surface-mounted wall/ceiling box, plastic, gray, (lxwxh) 130x130x77mm, depth 77mm, wall/ceiling mounting, rectangular, rated insulation voltage Ui 1000V, for pipe diameter other, housing penetration type breakout port, rear entry, 8 entries, surface protection none (untreated).

Specifications

Equipped with : None
Shape : Rectangular
Mounting method : Wall-/ceiling mounting
For tube diameter : Other
Inlet from the rear : Yes
Length (mm) : 130
Width (mm) : 130
Depth (mm) : 77
Tackable : No
Number of inlets : 8
Type of housing feed-through : Preembossing
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Grey
Degree of protection (IP) : IP66/IP67/IP69
Cover model : Other
Cover attachment : Screwed
Castable : No
With casting compound : No
Sealable : Yes
Rated insulation voltage Ui (V) : 1000
Circuit integrity : None
With screening : No
Weatherproof : Yes
Working temperature (°C) : -25 °C to 70 °C
Explosion-tested version : No
For Ex-zone gas : None
For Ex-Zone dust : None
