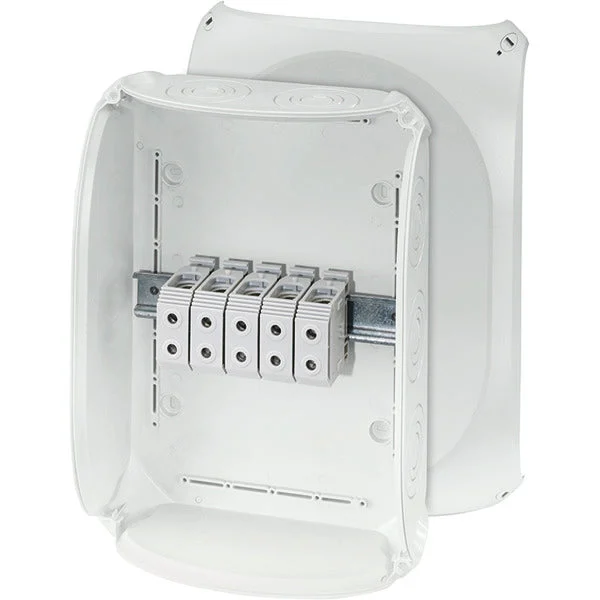

Hensel ENYCASE surface mount box wall/ceiling, plastic, gray, (lxwxd) 355x255x122mm, wall/ceiling mounting, equipped with terminal, rectangular, max. Conductor cross-section 50mm², rated insulation voltage Ui 690V, for pipe diameter other, housing penetration type breakout port, rear entry, 12 entries.
Specifications
Max. conductor cross section (mm²) : 50
Shape : Rectangular
Mounting method : Wall-/ceiling mounting
For tube diameter : Other
Inlet from the rear : Yes
Length (mm) : 355
Width (mm) : 255
Depth (mm) : 122
Tackable : No
Number of inlets : 12
Type of housing feed-through : Preembossing
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Grey
Degree of protection (IP) : IP66
Cover model : Other
Cover attachment : Screwed
Castable : No
With casting compound : No
Sealable : Yes
Rated insulation voltage Ui (V) : 690
Circuit integrity : None
With screening : No
Weatherproof : No
Working temperature (°C) : -25 °C to 40 °C
Explosion-tested version : No
For Ex-zone gas : None
For Ex-Zone dust : None
