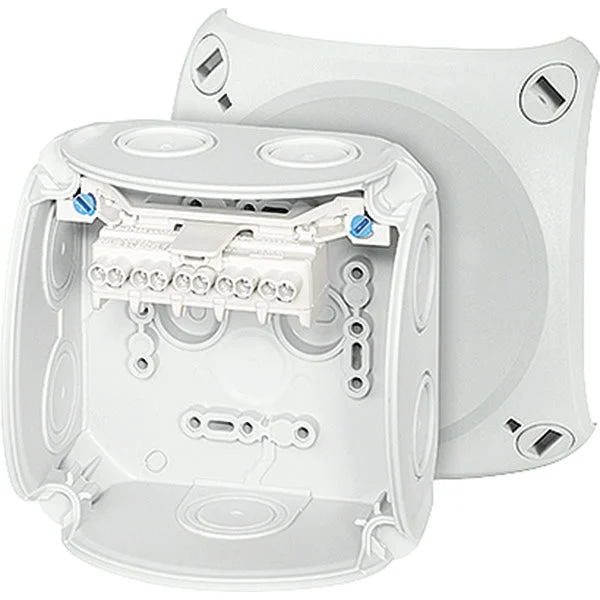

Cable junction box made of high-quality thermoplastic. For surface-mounted applications in buildings or protected outdoor installation. With outer tabs for fastening and fastening the lid via quick release fasteners. With innovative adhesive technology up to 2.5 mmm, 5, poles. Cable entry through elastic sealing membranes in enclosure walls and bottom. Retrofitting of cable supports possible by removing the sealing membranes. With lid retention strap.
Specifications
Max. conductor cross section (mm²) : 4
Shape : Square
Mounting method : Wall-/ceiling mounting
For tube diameter : Other
Inlet from the rear : Yes
Length (mm) : 104
Width (mm) : 104
Depth (mm) : 70
Tackable : No
Number of inlets : 8
Type of housing feed-through : Other
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Grey
Degree of protection (IP) : IP66
Cover model : Other
Cover attachment : Screwed
Castable : No
With casting compound : No
Sealable : Yes
Rated insulation voltage Ui (V) : 690
Circuit integrity : None
With screening : No
Weatherproof : No
Working temperature (°C) : -25 °C to 40 °C
Explosion-tested version : No
For Ex-zone gas : None
For Ex-Zone dust : None
