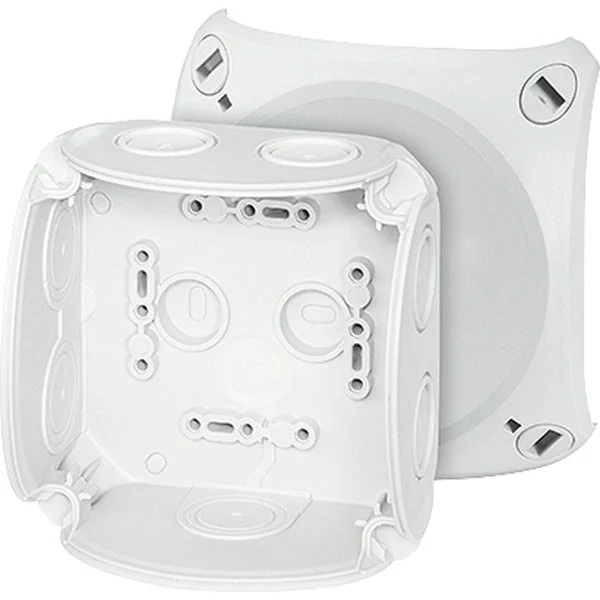

Without terminals. With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-17.0 mm. With one cable entry in the bottom, sealing range ø 6.0-15.0 mm. Lid fasteners sealable without accessories. Retaining strap and external brackets for wall fixing included. Colour: grey, ral 7035. To close opened membranes use grommets type edk.
Specifications
Equipped with : None
Shape : Square
Mounting method : Wall-/ceiling mounting
For tube diameter : Other
Inlet from the rear : Yes
Length (mm) : 104
Width (mm) : 104
Depth (mm) : 70
Tackable : No
Number of inlets : 8
Type of housing feed-through : Other
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Grey
Degree of protection (IP) : IP66
Cover model : Other
Cover attachment : Screwed
Castable : No
With casting compound : No
Sealable : Yes
Rated insulation voltage Ui (V) : 1000
Circuit integrity : None
With screening : No
Weatherproof : No
Working temperature (°C) : -25 °C to 40 °C
Explosion-tested version : No
For Ex-zone gas : None
For Ex-Zone dust : None
