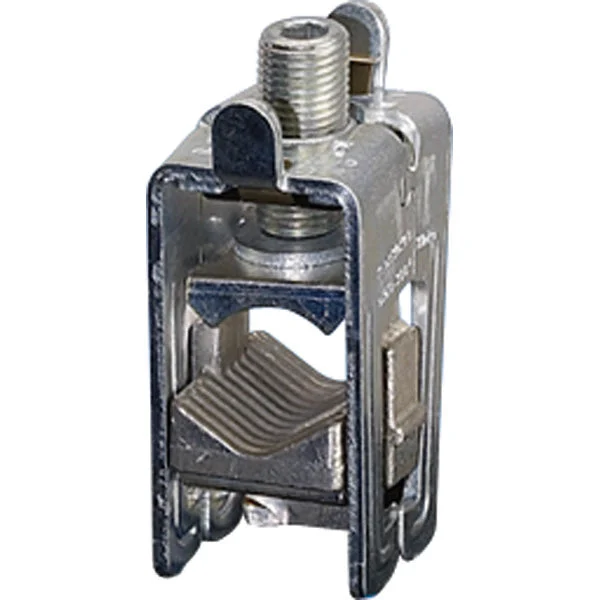

Hensel Connection Clamp For Rail 10mm Cu/Alu 120-300mm – KS 300

The Hensel Mi distribution terminal block is engineered for power rails. This device allows for direct terminal connections to a 10mm rail system made from copper or aluminum wiring, accommodating wire sizes ranging from 120 to 300mm². This makes it a prime solution for various applications requiring safe, effective, and efficient electrical connections.

Specifications

Busbar thickness (mm) : 10 mm to 10 mm
Busbar width (mm) : 20 mm to 30 mm
Suitable for : Flat rail
Width clamp (mm) : 38
Max. conductor cross section (mm²) : 300
Suitable for round conductor connection : Yes
Suitable for sector conductor connection : Yes
Suitable for strip conductor connection : No
