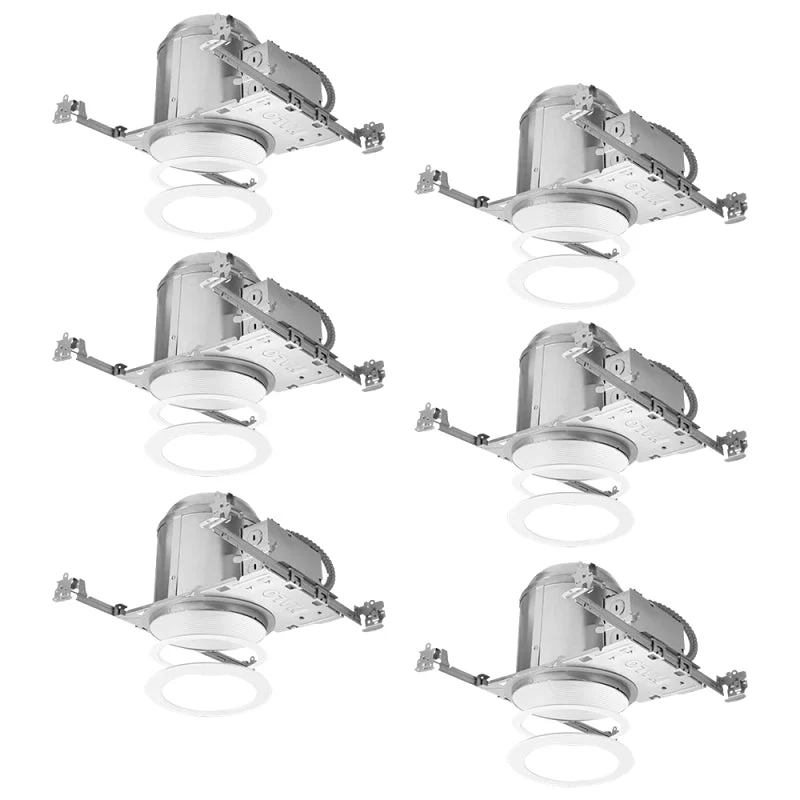

The H7 recessed housing is the standard in the industry for both commercial and residential applications. The wide variety of trims available allows a number of different lighting effects to be created with one basic housing. H7ICAT is for installations where the housing will be in direct contact with insulation and also meet restricted air flow requirements.
Unit: EA
UPC: 080083760176
Model Number: H7ICAT6100WB-6PK
Features
- Die-formed housing and plaster frame
- Housing may be removed from plaster frame for junction box access
- Aluminum construction for greater heat dissipation
- Sealed and gasketed for AIR-TITE ready installation
- Designed for insulated ceilings in direct contact with insulation
- Rigid socket plate adjusts and locks without tools for various lamp sizes
- Socket plate and bracket may be removed when using socket supporting trims
- Housing adjusts in plaster frame to accommodate up to 1 in ceiling thickness
- Q-channel bars feature an unique inverted q interlocking channel for rigidity and stability
- Pass-N-Thru feature allows bars to cross-over for tool-less shortening in tight spaces less than 12 in without removing from the plaster frame
Additional Information
- Ceiling Opening Size: 6-1/2 in
- Ceiling Type: Insulated
- Construction Type: New Construction
- Dimensions: 10-1/2 in L x 7-1/2 in W x 7 in H
- Includes: (3) Push 4-Port Push-In Wire Nut Cut-Outs Locking Screw Overspray Protector Wiring Connectors White Baffle Narrow and Wide White Trims
- Material: Aluminum
- Mounting Type: Recessed
- Recessed Can Diameter: 6 in
- Suitable for: Halo LED Lighting Systems
