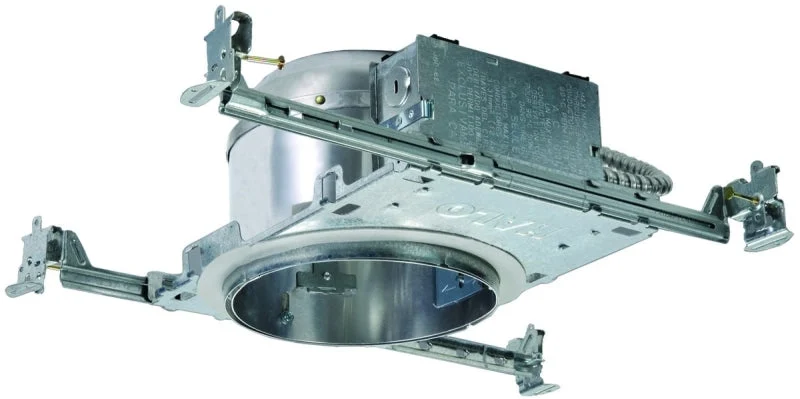

The H27ICAT housing is designed for use in shallow ceilings. The wide variety of trims available allows a number of different lighting effects to be created with one basic housing. The H27ICAT is designed for shallow ceilings where insulation is present. The H27ICAT housing is of Air-Tite construction and prevents airflow between conditioned spaces and unconditioned attic/plenum areas.
Unit: EA
UPC: 662400605898
Model Number: H27ICAT
Features
- Quick connect wiring connectors included in junction box
- Die-formed housing and plaster frame
- Housing may be removed from plaster frame for junction box access
- Shallow ceiling housing
- Aluminum housing for greater heat dissipation
- Sealed and gasketed for AIR-TITE™™ ready installation
- Rigid socket plate adjusts and locks without tools for various lamp sizes
- Socket plate and bracket may be removed when using socket supporting trims
- Housing adjusts in plaster frame to accommodate 1 in different ceiling thicknesses
- Self-resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation
Additional Information
- Ceiling Opening Size: 6-1/2 in
- Ceiling Type: Non-Insulated
- Dimensions: 10-1/2 in L x 7-1/2 in W x 5 in H
- Includes: Overspray Protector (3) 4-Port Push-In Quick-Connect Wire Nuts
- Material: Aluminum
- Mounting Type: Recessed
- Recessed Can Diameter: 6 in
Application: For light commercial and residential applications
