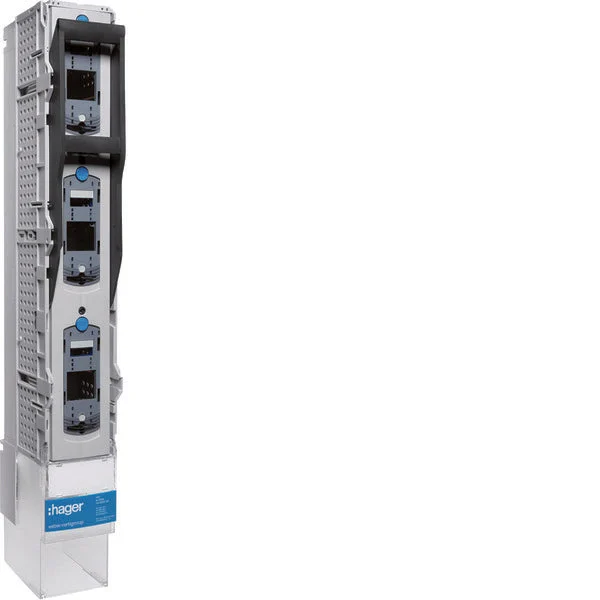

Hager Weber Pattern Load Separation Strip – LVSG2CPX

Hager Weber pattern load disconnect strip, type fuse disconnector, DIN size fuse pattern NH2, center distance rail 185 mm, rated continuous current Iu 400A, main circuit connection type screw terminal, 3 poles, max rated operating voltage Ue at A 690V.

Specifications

Model : Fuse switch disconnector
Double interrupting : No
Rated permanent current Iu (A) : 400
Distance between rail center, 40 mm : No
Distance between rail center, 50 mm : No
Distance between rail center, 60 mm : No
Distance between rail center, 100 mm : No
Distance between rail center, 185 mm : Yes
Max. rated operation voltage Ue AC (V) : 690
Conditioned rated short-circuit current Iq (kA) : 120
Type of electrical connection of main circuit : Screw connection
Number of poles : 3
Construction size fuse insert : NH2
Release indication : None
