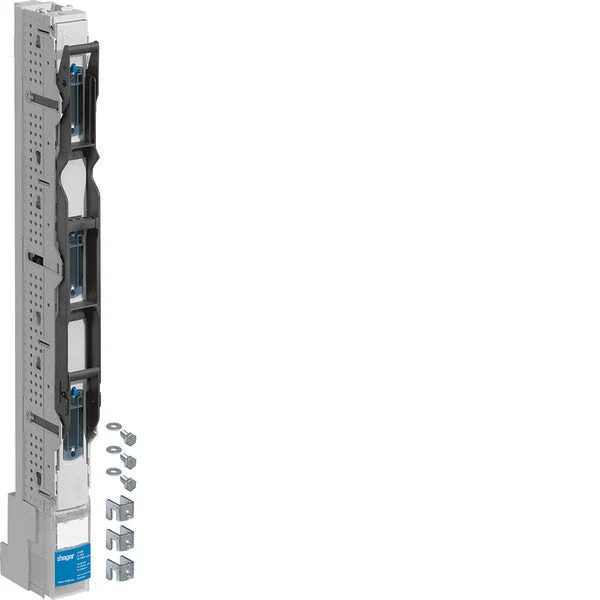

Hager Weber Pattern Load Separation Strip – LVSG00SPX

Hager Weber pattern load disconnect strip, fuse switch design, DIN size fuse pattern NH00, center distance rail 185 mm, rated continuous current Iu 160A, main circuit connection type screw terminal, 3 poles, max rated operating voltage Ue at A 690V.

Specifications

Model : Fuse switch disconnector
Double interrupting : No
Rated permanent current Iu (A) : 160
Distance between rail center, 40 mm : No
Distance between rail center, 50 mm : No
Distance between rail center, 60 mm : No
Distance between rail center, 100 mm : No
Distance between rail center, 185 mm : Yes
Max. rated operation voltage Ue AC (V) : 690
Conditioned rated short-circuit current Iq (kA) : 120
Type of electrical connection of main circuit : Screw connection
Number of poles : 3
Construction size fuse insert : NH00
Release indication : None
