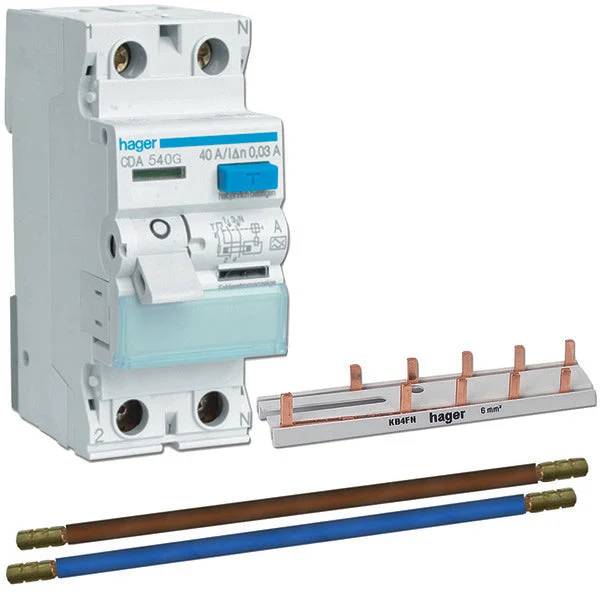

This earth leakage switch expansion kit from Hager’s Vision series features mounting-friendly Bi-Connect terminals. Using the test button, the proper functioning of the device can be verified. This expansion set with 1 RCD includes wiring and jumper rail. The Hager Vision expansion set fits both the VKS and the VKG from the Vision series.
Specifications
Number of poles : 2
Rated voltage (V) : 230
Rated current (A) : 40
Rated fault current (A) : 0.03
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Mounting method : Other
Leakage current type : A
Selective protection : No
Short-time delayed tripping : No
Short-circuit breaking capacity (Icw) (kA) : 6
Surge current capacity (kA) : 0.25
Voltage-type : AC
With interlocking device : No
Frequency : 50/60 Hz
Additional equipment possible : No
Degree of protection (IP) : IP20
Width in number of modular spacings : 2
Built-in depth (mm) : 70
Ambient temperature during operating (°C) : -25 °C to 40 °C
Pollution degree : 2
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 16 mm²
Connectable conductor cross section solid-core (mm²) : 1 mm² to 25 mm²
Explosion-proof : No
