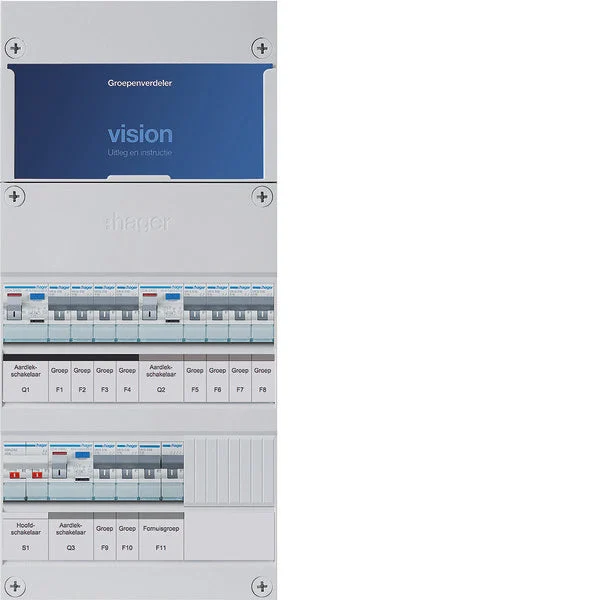

Hager VISION Installation Cabinet – VKG424E-F

Hager VISION installation cabinet, (HxWxD) 475x221x89mm, cooking group 1-phase, installation/earth leakage circuit breaker protection, total number of groups 11, cooking group suitable as a power group, 1 phase, 10 light groups, 3 earth leakage switches 30mA, degree of protection (IP) IP30, 11 groups behind earth leakage circuit breaker, surface-mounted.

Specifications

Mounting method : Surface mounted (plaster)
Number of phases : 1
Protection : Miniature- / earth leakage circuit breaker
Total number of groups : 11
Number of direct groups : 0
Number of light groups : 10
Number of groups behind earth leakage switch : 11
Number of earth leakage circuit breakers : 0
Number of earth leakage switches 30 mA : 3
Number of earth leakage switches 300 mA : 0
Number of arc fault detection devices AFDD : 0
Protection main switch : Yes
Number of poles main switch : 2
Main switch rated current (A) : 40
Suitable for data : No
Cooker group : Single phase
Cooker group suitable as power current group : Yes
With socket outlet : No
With bell transformer : No
Over voltage protection : No
With meter : No
Material : Plastic
Degree of protection (IP) : IP30
Height (mm) : 475
Width (mm) : 221
Width in number of modular spacings : 12
Depth (mm) : 89
Extension possible : Yes
With transparent cover : No
Lockable : No
