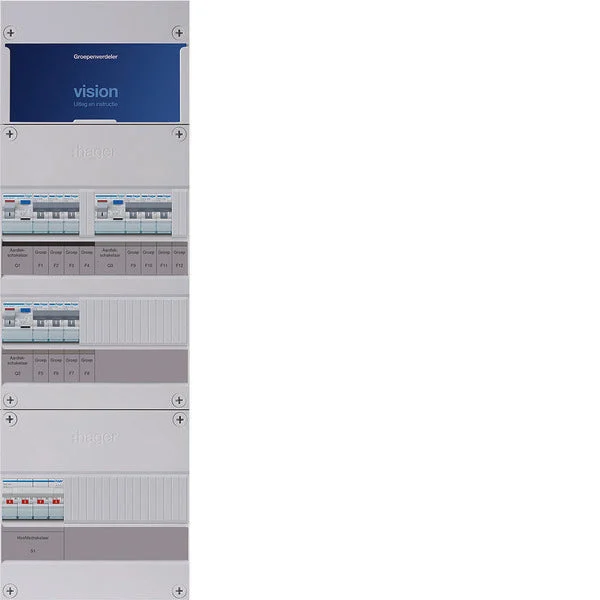

Hager VISION Installation Cabinet – VKG333M

The Hager Vision group divider has a plastic mounting frame and a cover cap with module probe with 4 captive screws. This Vision 3 phase group divider also features 9 groups distributed over 3 RCDs complete with main switch. This Vision group box is supplied without conduit entry. With this VKZ manifold, choose from 3 separately available pipe feeders: 145mm including ground terminal and external grounding(VKG80T 1 row or VKG81T 2 rows), 70mm including horizontal ground terminal(VKS70T) or 0mm including brass ground rail(VKG96T). The advantages for you: Beautiful residential subdivider.

Specifications

Mounting method : Surface mounted (plaster)
Number of phases : 3
Protection : Miniature- / earth leakage circuit breaker
Total number of groups : 9
Number of direct groups : 0
Number of light groups : 9
Number of groups behind earth leakage switch : 9
Number of earth leakage circuit breakers : 0
Number of earth leakage switches 30 mA : 3
Number of earth leakage switches 300 mA : 0
Number of arc fault detection devices AFDD : 0
Protection main switch : Yes
Number of poles main switch : 4
Main switch rated current (A) : 40
Protection split load : Yes
Suitable for data : No
Cooker group : None
Cooker group suitable as power current group : No
With socket outlet : No
With bell transformer : No
Over voltage protection : No
With meter : No
Material : Plastic
Degree of protection (IP) : IP30
Height (mm) : 695
Width (mm) : 220
Width in number of modular spacings : 12
Depth (mm) : 89
Extension possible : Yes
With transparent cover : No
Lockable : No
