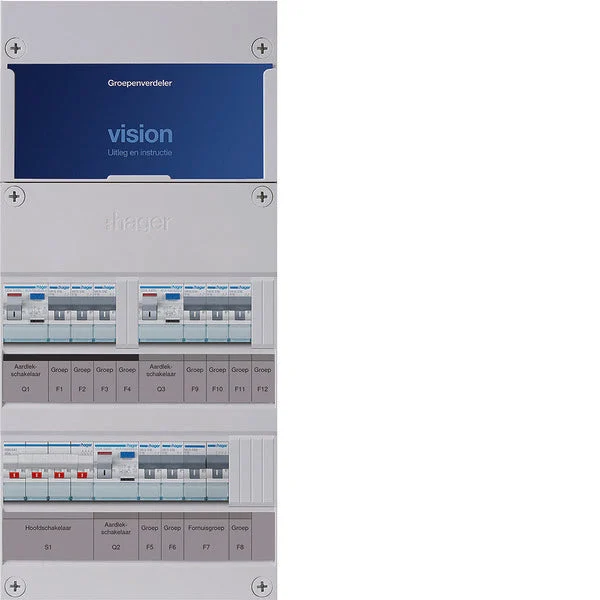

The Hager Vision group divider has a plastic mounting frame and a cover cap with module probe with 4 captive screws. This Vision 3 phase group distributor also features 8 light groups and 1 cooking group, distributed over 3 earth leakage switches complete with main switch. The advantages for you: Beautiful residential distributor with good expansion possibilities. CombiKit (ALS + circuit breakers) for easy expansion. Mounting-friendly pipe feeder; suitable for eight pipes with a diameter of 16 or 19 (20) mm.
Specifications
Mounting method : Surface mounted (plaster)
Number of phases : 3
Protection : Miniature- / earth leakage circuit breaker
Total number of groups : 9
Number of direct groups : 0
Number of light groups : 8
Number of groups behind earth leakage switch : 9
Number of earth leakage circuit breakers : 0
Number of earth leakage switches 30 mA : 3
Number of earth leakage switches 300 mA : 0
Number of arc fault detection devices AFDD : 0
Protection main switch : Yes
Number of poles main switch : 4
Main switch rated current (A) : 40
Protection split load : Yes
Suitable for data : No
Cooker group : Single phase
Cooker group suitable as power current group : Yes
With socket outlet : No
With bell transformer : No
Over voltage protection : No
With meter : No
Material : Plastic
Degree of protection (IP) : IP30
Height (mm) : 475
Width (mm) : 221
Width in number of modular spacings : 12
Depth (mm) : 89
Extension possible : Yes
With transparent cover : No
Lockable : No
