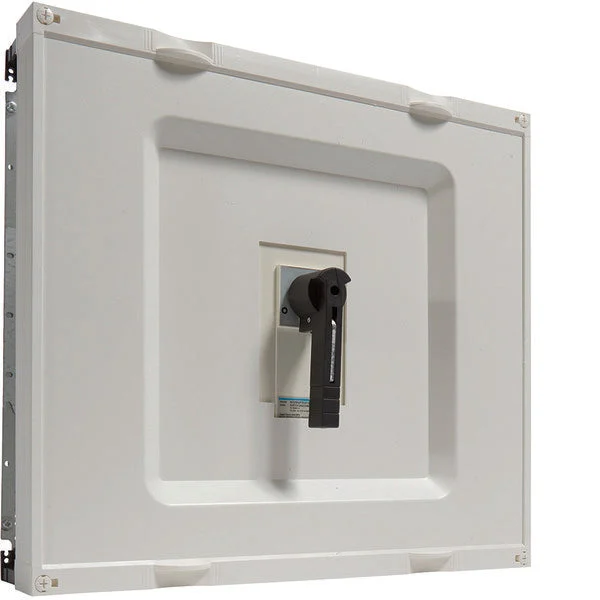

Hager Univers N Built-in switch-disconnector, main switch design, operating voltage (measuring voltage) 380 – 415V, rated continuous current Iu 630A, rated continuous current, AC-21, 400 V 630A, rated power, AC-23, 400 V 280kW, switching power at 400 V 280kW, 4 poles.
Specifications
Version as main switch : Yes
Version as maintenance-/service switch : No
Version as safety switch : No
Version as emergency stop installation : No
Number of switches : 1
Rated operating voltage (V) : 380 V to 415 V
Rated permanent current Iu (A) : 630
Rated operation power at AC-23, 400 V (kW) : 280
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Device construction : Complete device in housing
Suitable for floor mounting : No
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Interlockable : No
Type of electrical connection of main circuit : Bolt connection
Degree of protection (IP), front side : IP00
