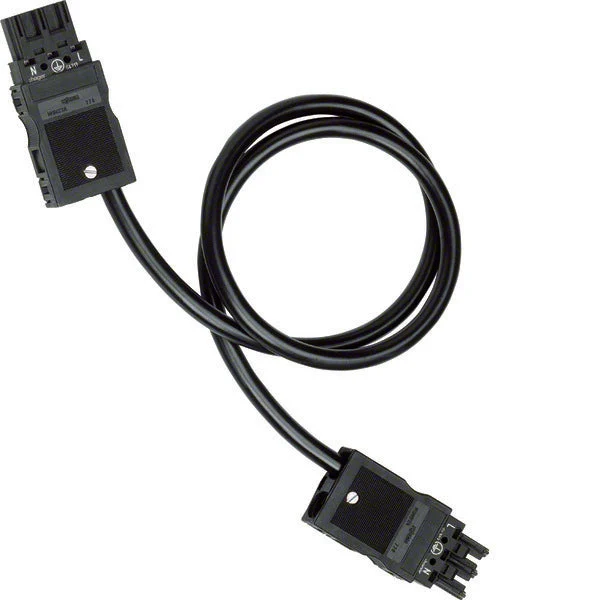

Hager Tehalit Patch Cable Adjustable Building Installation – GKWAD03006

Hager Tehalit Ecoline patch cable inst.bare buildinginstall.

Specifications

Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 3
Degree of protection (IP) : IP20
Type of finished cable : Connecting cable
Type side 1 : Bus
Type side 2 : Plug
Total length (mm) : 600
Mechanical coding : Yes
Color coding/contact insert : White
Color housing : Black
Cable type : H05VV-F
Cable diameter (mm) : 10 mm to 10 mm
Dismantle length (mm) : 55
Strip length (mm) : 9
Color outer sheath : Black
Pole codification : L, N, PE
Nominal cross section conductor (mm²) : 2.5
Locking mechanism : Integrated in plug-in connector
Insulating piece permanent temperature-resistant (°C) : 105
Cable permanent temperature-resistant to (°C) : 70
Max. operating temperature at conductor (°C) : 70
Halogen free : No
Fire load (kWh) : 0.468
Surface treatment contacts : Tinned
Pollution degree : 3
Continuity resistor (mOhm) : 1
Rated surge voltage (kV) : 4
Reaction-to-fire class according to EN 13501-6 : Eca
