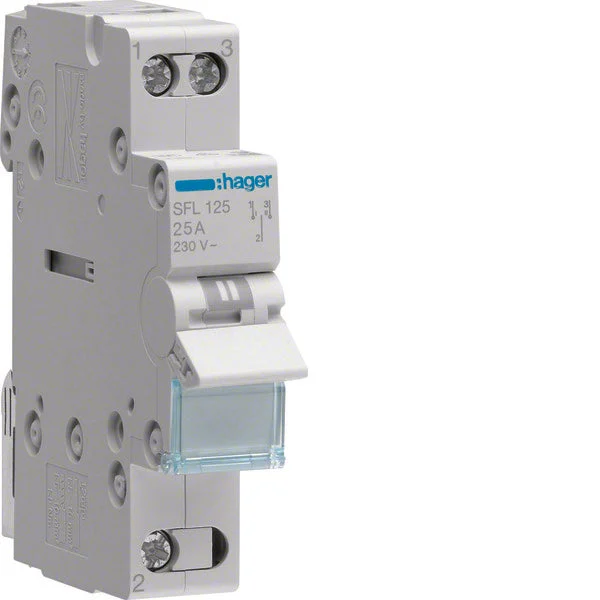

Hager SFL Flush-Mounting Switch Modular – SFL125

Hager SFL flush-mounting switch modular, nom. (measuring) current 25A, switching function changeover switch, 1 pole, 1 changeover contacts, degree of protection (IP) IP20, width in module units 1, mounting depth 68mm, short-circuit resistance (Icw) 0.375kA, min. Measuring voltage 230V, rated breaking capacity 0.529kA.

Specifications

Switching function : Two-way switch
Number of contacts as normally open contact : 0
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 1
Number of poles : 1
Rated current (A) : 25
Rated voltage (V) : 230
Min. rated voltage (V) : 230
Rated switching capacity (kA) : 0.529
Short-circuit breaking capacity (Icw) (kA) : 0.375
Voltage-type : AC
With signal lamp : No
Max. lamp power (W) : 0
Width in number of modular spacings : 1
Built-in depth (mm) : 68
Degree of protection (IP) : IP20
