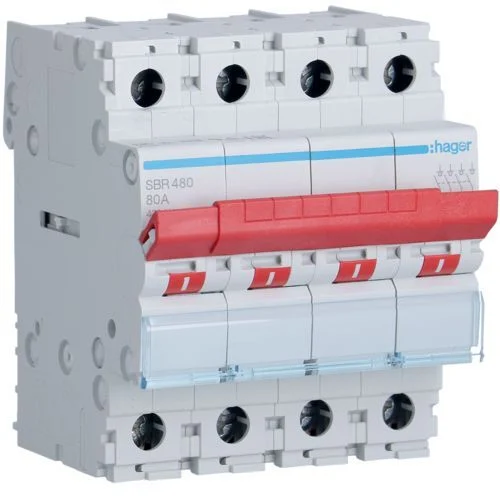

This modular load breaker has a red rocker switch. The main switch has an ON and OFF indicator on the rocker switch, so you always know the status of the contacts. In addition, the modular switch-disconnector features Bi-connection for applying comb rails. Hager SBR main switches are available in several variants.
Specifications
Switching function : Off switch
Number of contacts as normally open contact : 4
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Number of poles : 4
Rated current (A) : 80
Rated voltage (V) : 400
Min. rated voltage (V) : 400
Rated switching capacity (kA) : 1.354
Short-circuit breaking capacity (Icw) (kA) : 0.96
Voltage-type : AC
With signal lamp : No
Color calotte : Red
Max. lamp power (W) : 0
Width in number of modular spacings : 4
Built-in depth (mm) : 69
Degree of protection (IP) : IP20
