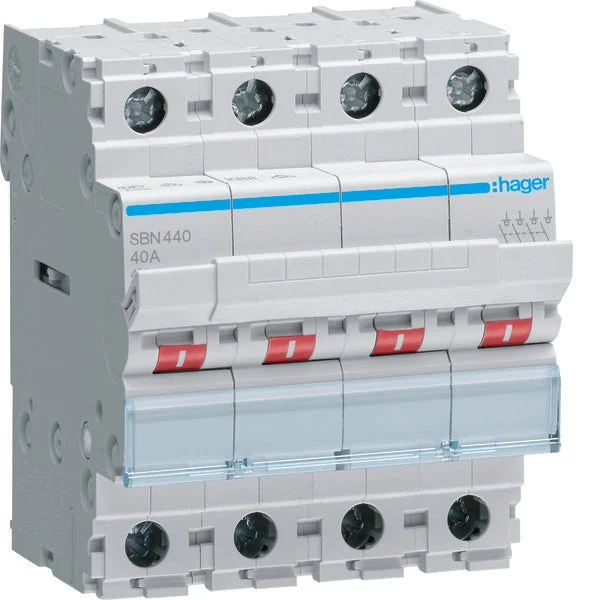

Hager SBN flush-mounting switch modular, nom. (measuring) current 40A, switching function off switch, 4 make contacts, 4 poles, degree of protection (IP) IP20, width in module units 4, installation depth 69mm, short-circuit resistance (Icw) 0.6kA, min. Measuring voltage 400V, rated breaking capacity 0.846kA.
Specifications
Switching function : Off switch
Number of contacts as normally open contact : 4
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Number of poles : 4
Rated current (A) : 40
Rated voltage (V) : 400
Min. rated voltage (V) : 400
Rated switching capacity (kA) : 0.846
Short-circuit breaking capacity (Icw) (kA) : 0.6
Voltage-type : AC
With signal lamp : No
Max. lamp power (W) : 0
Width in number of modular spacings : 4
Built-in depth (mm) : 69
Degree of protection (IP) : IP20
