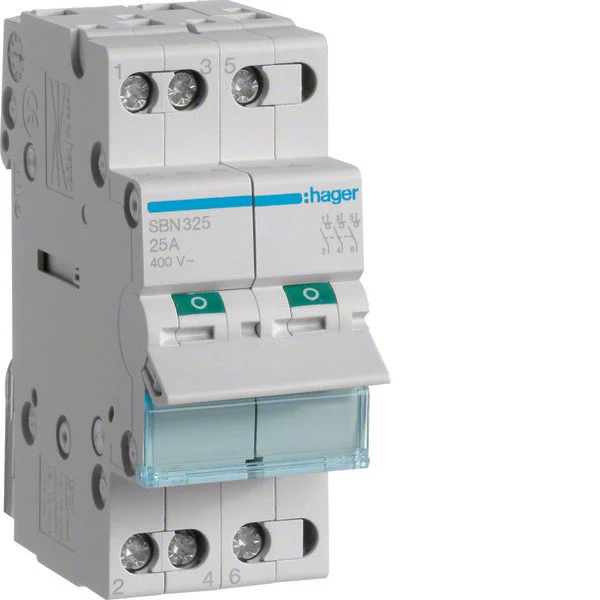

Hager SBN Flush-Mounting Switch Modular – SBN325

Hager SBN flush-mounting switch modular, nom. (measuring) current 25A, switching function off switch, 3 make contacts, 3 poles, degree of protection (IP) IP20, width in module units 2, built-in depth 68mm, cap (calotte) gray, short-circuit resistance (Icw) 0.375kA, min. Measuring voltage 400V.

Specifications

Switching function : Off switch
Number of contacts as normally open contact : 3
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Number of poles : 3
Rated current (A) : 25
Rated voltage (V) : 400
Min. rated voltage (V) : 400
Rated switching capacity (kA) : 0.529
Short-circuit breaking capacity (Icw) (kA) : 0.375
Voltage-type : AC
With signal lamp : No
Color calotte : Grey
Max. lamp power (W) : 0
Width in number of modular spacings : 2
Built-in depth (mm) : 68
Degree of protection (IP) : IP20
