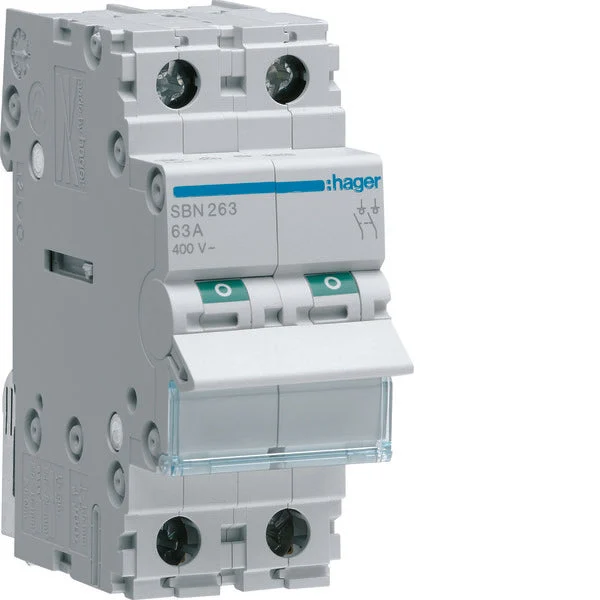

Hager SBN Flush-Mounting Switch Modular – SBN263

Hager SBN flush-mounting switch modular, nom. (measuring) current 63A, switching function off switch, 2 make contacts, 2 poles, degree of protection (IP) IP20, width in module units 2, installation depth 68mm, cap (calyx) gray, short-circuit resistance (Icw) 0.945kA, min. Measuring voltage 400V.

Specifications

Switching function : Off switch
Number of contacts as normally open contact : 2
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Number of poles : 2
Rated current (A) : 63
Rated voltage (V) : 400
Min. rated voltage (V) : 400
Rated switching capacity (kA) : 1.332
Short-circuit breaking capacity (Icw) (kA) : 0.945
Voltage-type : AC
With signal lamp : No
Color calotte : Grey
Max. lamp power (W) : 0
Width in number of modular spacings : 2
Built-in depth (mm) : 68
Degree of protection (IP) : IP20
