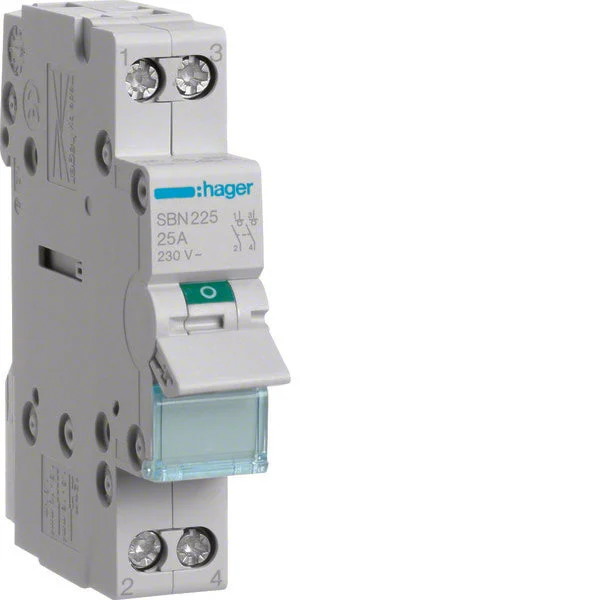

This modular load breaker has a light gray rocker switch. The main switch has an ON and OFF indicator on the rocker switch, so you always know the status of the contacts. Hager SBN main switches are available in several variants.
Specifications
Switching function : Off switch
Number of contacts as normally open contact : 2
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Number of poles : 2
Rated current (A) : 25
Rated voltage (V) : 230
Min. rated voltage (V) : 230
Rated switching capacity (kA) : 0.529
Short-circuit breaking capacity (Icw) (kA) : 0.375
Voltage-type : AC
With signal lamp : No
Color calotte : Grey
Max. lamp power (W) : 0
Width in number of modular spacings : 1
Built-in depth (mm) : 68
Degree of protection (IP) : IP20
