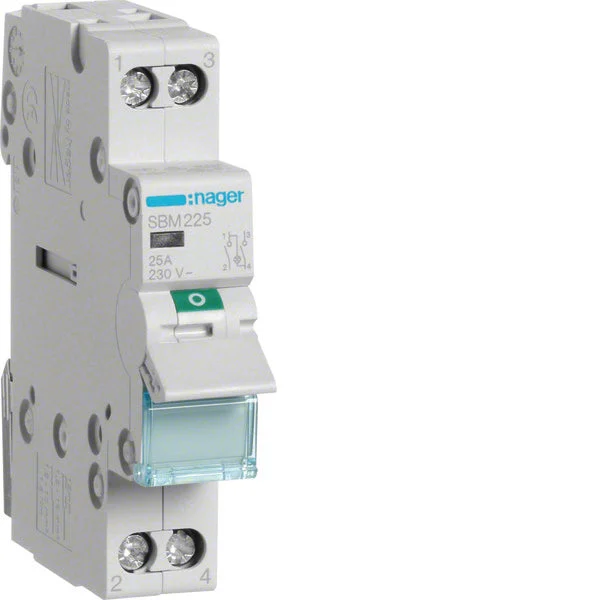

This modular load breaker has a light gray rocker switch and an indicator lamp. When connected below, the indicator lamp lights up when turned on. When connected above, the indicator lamp lights continuously. The operation of the indicator lamp for ‘bottom’ and ‘top’ types applies only when connecting the power supply wiring to the top of the component. With an above-below connection, the indicator lamp lights up when turned on (regardless of connection type of feeder wiring). Hager main switches are available in several varieties.
Specifications
Switching function : Off switch with control lamp
Number of contacts as normally open contact : 2
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Number of poles : 2
Rated current (A) : 25
Rated voltage (V) : 230
Min. rated voltage (V) : 230
Rated switching capacity (kA) : 0.529
Short-circuit breaking capacity (Icw) (kA) : 0.375
Voltage-type : AC
With signal lamp : Yes
Color calotte : Other
Lamp type : LED
Lamp socket : Other
Max. lamp power (W) : 0
Width in number of modular spacings : 1
Built-in depth (mm) : 68
Degree of protection (IP) : IP20
