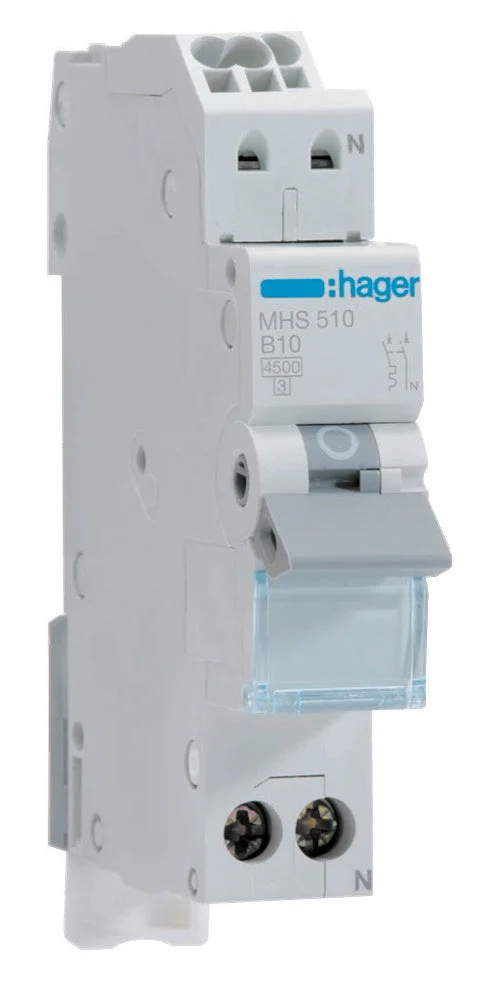

The Quickconnect connection technology of the Hager Quickconnect circuit breaker allows you to make a safe and fast connection. The solid conductor can be inserted without tools. Removability by flexible fastening clip. Hager Quickconnect circuit breakers are available in several variants.
Specifications
Built-in depth (mm) : 70
Release characteristic : B
Number of poles (total) : 2
Number of protected poles : 1
Rated current (A) : 10
Rated voltage (V) : 240
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA) : 4.5
Voltage-type : AC
Frequency (Hz) : 50 Hz to 60 Hz
Current limiting class : 3
Flush-mounted installation : Yes
Concurrently switching neutral conductor : Yes
Over voltage category : 3
Pollution degree : 2
Additional equipment possible : No
Width in number of modular spacings : 1
Degree of protection (IP) : IP20
Ambient temperature during operating (°C) : -25 °C to 70 °C
Connectable conductor cross section multi-wired (mm²) : 1.5 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²) : 1.5 mm² to 4 mm²
Explosion-proof : No
