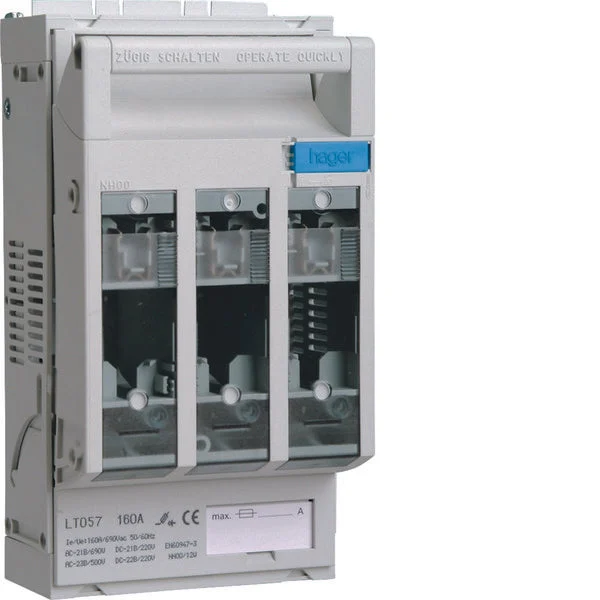

Hager LT pattern load breaker, construction size fuse inserts NH00, equipment pattern load breaker with safety load shake, rated operating current Ie 160A, 3 poles, degree of protection (IP) IP3X, degree of protection (NEMA) 1, enclosure width 106mm, contact breaker double, enclosure depth 104mm.
Specifications
Equipment fuse switch disconnector housing : With safety switch disconnector
Number of poles : 3
Rated operation current Ie (A) : 160
Max. rated operation voltage Ue AC (V) : 690
Rated insulation voltage Ui (V) : 1000
Construction size fuse inserts : NH00
With error protection : Yes
Housing width (mm) : 106
Housing depth (mm) : 104
Height of housing (mm) : 206
Degree of protection (IP) : IP3X
Degree of protection (NEMA) : 1
