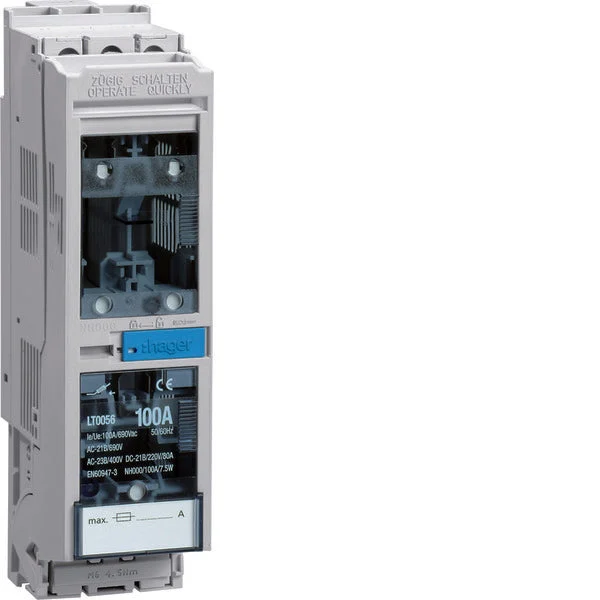

Hager LT pattern load breaker, construction size fuse inserts NH000, equipment pattern load breaker with safety load shake, rated operating current Ie 100A, 3 poles, degree of protection (IP) IP20, degree of protection (NEMA) 1, enclosure width 53mm, contact breaker double, enclosure depth 106mm.
Specifications
Equipment fuse switch disconnector housing : With safety switch disconnector
Number of poles : 3
Rated operation current Ie (A) : 100
Max. rated operation voltage Ue AC (V) : 690
Rated insulation voltage Ui (V) : 1000
Construction size fuse inserts : NH000
With error protection : No
Housing width (mm) : 53
Housing depth (mm) : 106
Height of housing (mm) : 206
Degree of protection (IP) : IP3X
Degree of protection (NEMA) : 1
