Hager Inverter Load Breaker – HIM406

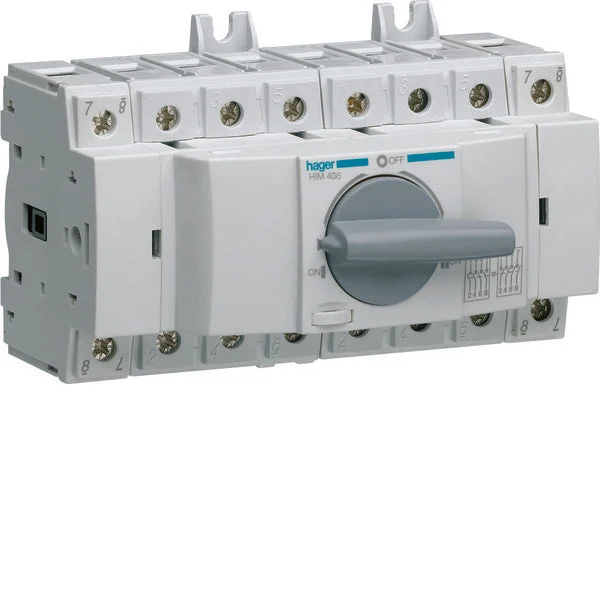

This modular manual load breaker has a light gray rotary knob and 3 switching positions. Suitable for under load switching of 2 low voltage circuits with safe isolation. The load inverter is for mounting on DIN rail. Hager HIM inverters are available in several variants.

Specifications

Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : Yes
Version as emergency stop installation : No
Version as reversing switch : Yes
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 415
Rated operating voltage (V) : 380 V to 415 V
Rated permanent current Iu (A) : 63
Rated permanent current at AC-23, 400 V (A) : 63
Rated permanent current at AC-21, 400 V (A) : 63
Rated short-time withstand current lcw (kA) : 1.5
Rated operation power at AC-23, 400 V (kW) : 28
Switching power at 400 V (kW) : 41
Conditioned rated short-circuit current Iq (kA) : 50
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : Yes
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : Yes
Suitable for intermediate mounting : No
Color control element : Grey
Type of control element : Short thumb-grip
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP20
Degree of protection (NEMA) : Other
