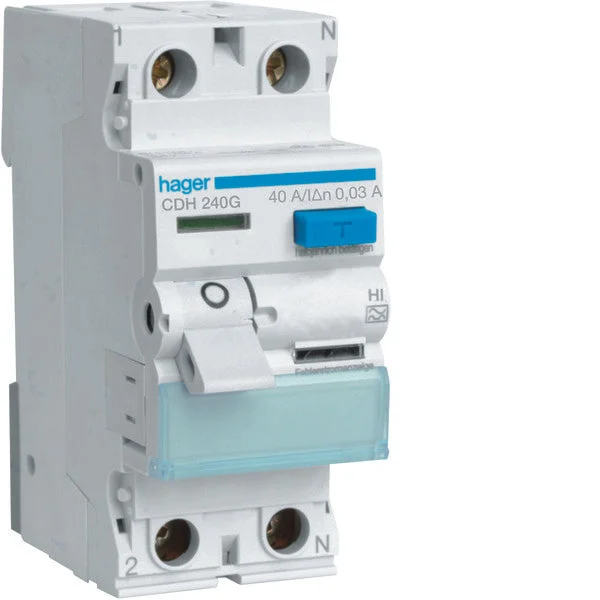

This Hager ground fault circuit interrupter features mounting-friendly Bi-Connect terminals. Removability through flexible attachment clip. This RCCB is short-circuit resistant up to 6kA with pre-insurance 63A/gL and pulse current sensitive and current surge resistant up to 250A. Using the test button, the proper functioning of the device can be verified. Hager High Immunity RCDs are available in several varieties.
Specifications
Number of poles : 2
Rated voltage (V) : 230
Rated current (A) : 40
Rated fault current (A) : 0.03
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Mounting method : DIN rail
Leakage current type : Other
Selective protection : No
Short-time delayed tripping : No
Short-circuit breaking capacity (Icw) (kA) : 6
Surge current capacity (kA) : 3
Voltage-type : AC
With interlocking device : Yes
Frequency : 50 Hz
Additional equipment possible : Yes
Degree of protection (IP) : IP20
Width in number of modular spacings : 2
Built-in depth (mm) : 70
Ambient temperature during operating (°C) : -25 °C to 40 °C
Pollution degree : 2
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 16 mm²
Connectable conductor cross section solid-core (mm²) : 1 mm² to 25 mm²
Explosion-proof : No
