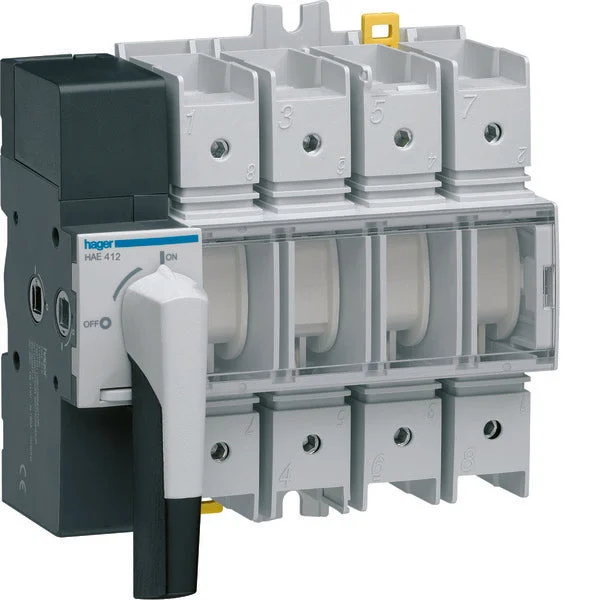

Hager HAE Switch-Disconnector – HAE412

This modular load breaker has a light gray rotary knob and visible separation. The rotary control of this main switch is padlockable directly on the component in the OFF position. In addition, this HAE main switch provides guaranteed on/off switching and safe isolation in all low-voltage networks. Suitable for mounting on DIN rail or mounting plate, cage terminals up to a maximum of 70mm². Hager HAE main switches are available in several variants.

Specifications

Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : Yes
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 415
Rated operating voltage (V) : 380 V to 415 V
Rated permanent current Iu (A) : 125
Rated permanent current at AC-23, 400 V (A) : 125
Rated permanent current at AC-21, 400 V (A) : 125
Rated short-time withstand current lcw (kA) : 4
Rated operation power at AC-23, 400 V (kW) : 56
Switching power at 400 V (kW) : 82
Conditioned rated short-circuit current Iq (kA) : 65
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : Yes
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : Yes
Suitable for intermediate mounting : No
Color control element : Grey
Type of control element : Short thumb-grip
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP20
Degree of protection (NEMA) : Other
