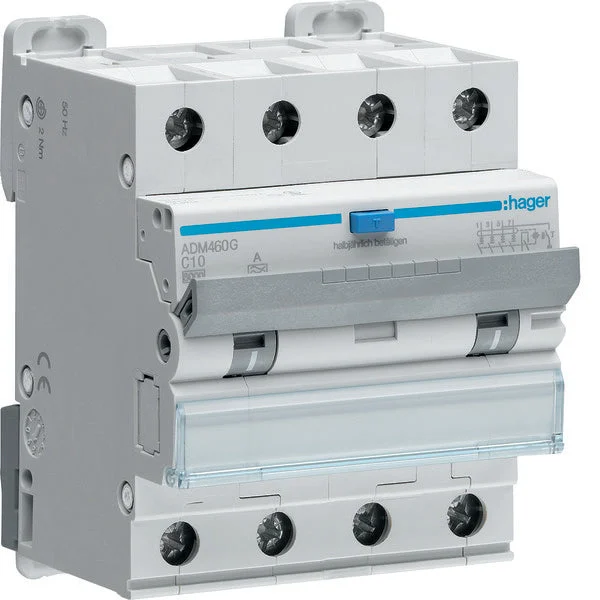

Hager HACO Earth Leakage Circuit Breaker – ADM460G

This Hager HACO earth leakage circuit breaker is 4-pole (all protected) features mounting-friendly Bi-Connect terminals and is equipped with double Quick-Snap. The ground fault indicator is located in the center of the component. The Hager HACO earth leakage circuit breaker is compatible with auxiliary elements such as auxiliary and signal contacts, disconnect coils and remote controls. This earth leakage circuit breaker is short-circuit proof up to 6k and has a rated fault current of 30mA. Furthermore, the circuit breaker has a mounting depth of 70mm and a tripping characteristic C.

Specifications

Number of poles (total) : 4
Number of protected poles : 4
Rated voltage (V) : 400
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Rated current (A) : 10
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 10
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA) : 6
Disconnection characteristic : Undelayed
Surge current capacity (kA) : 3
Voltage-type : AC
Frequency : 50 Hz
Release characteristic : C
Concurrently switching neutral conductor : No
With interlocking device : Yes
Over voltage category : 3
Pollution degree : 2
Ambient temperature during operating (°C) : -25 °C to 40 °C
Width in number of modular spacings : 4
Built-in depth (mm) : 70
Flush-mounted installation : Yes
Anti-nuisance tripping version : No
Degree of protection (IP) : IP20
Connectable conductor cross section solid-core (mm²) : 1 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 16 mm²
