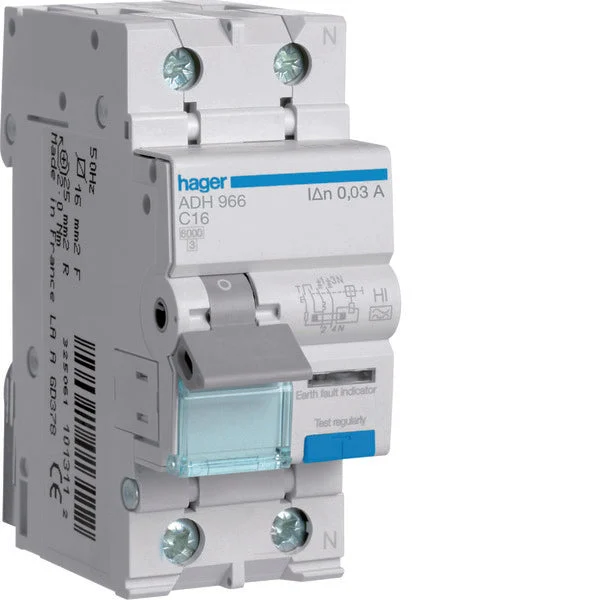

This Hager Haco ground fault circuit breaker features mounting-friendly Bi-Connect terminals. Removability through flexible attachment clip. In addition, the Hager Haco earth leakage circuit breaker also features fault current indication in a window (yellow, transparent). This earth leakage circuit breaker is short-circuit proof up to 6kA with pre-insurance 63A/gL and pulse current sensitive and current surge proof up to 250A. With the help of the test button, the correct functioning of the device can be verified. Hager Haco High Immunity earth leakage circuit breakers are available in several varieties.
Specifications
Number of poles (total) : 2
Number of protected poles : 1
Rated voltage (V) : 240
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Rated current (A) : 16
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 6
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA) : 6
Disconnection characteristic : Undelayed
Surge current capacity (kA) : 3
Voltage-type : AC
Frequency : 50 Hz
Release characteristic : C
Concurrently switching neutral conductor : Yes
With interlocking device : Yes
Over voltage category : 3
Pollution degree : 2
Ambient temperature during operating (°C) : -25 °C to 40 °C
Width in number of modular spacings : 2
Built-in depth (mm) : 68
Flush-mounted installation : Yes
Anti-nuisance tripping version : No
Degree of protection (IP) : IP2X
Connectable conductor cross section solid-core (mm²) : 1 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 16 mm²
