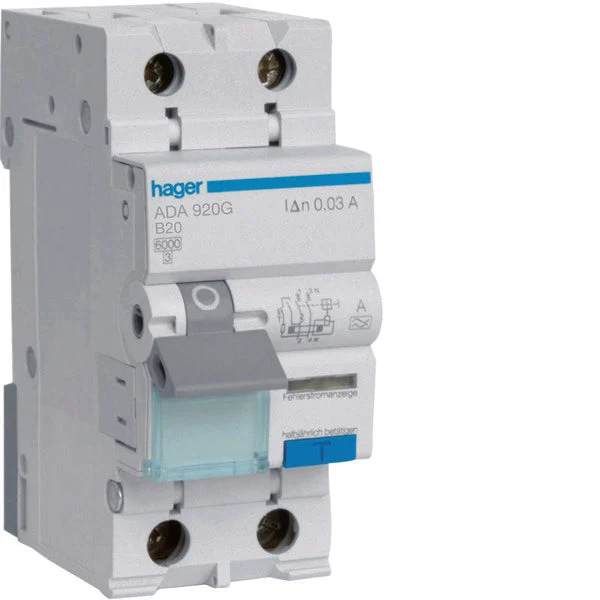

This Hager Class A earth leakage circuit breaker features mounting-friendly Bi-Connect terminals and is equipped with double Quick-Snap. In addition, the Hager Haco Class A earth leakage circuit breaker also features fault current indication in a window (yellow, transparent). This earth leakage circuit breaker is short-circuit proof up to 6kA with pre-insurance 63A/gL and pulse current sensitive and current surge proof up to 250A. Using the test button, the proper functioning of the device can be verified.
Specifications
Number of poles (total) : 2
Number of protected poles : 1
Rated voltage (V) : 240
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Rated current (A) : 20
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 6
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA) : 6
Disconnection characteristic : Undelayed
Surge current capacity (kA) : 0.25
Voltage-type : AC
Frequency : 50 Hz
Release characteristic : B
Concurrently switching neutral conductor : Yes
With interlocking device : Yes
Over voltage category : 3
Pollution degree : 2
Ambient temperature during operating (°C) : -25 °C to 40 °C
Width in number of modular spacings : 2
Built-in depth (mm) : 68
Flush-mounted installation : Yes
Anti-nuisance tripping version : No
Degree of protection (IP) : IP2X
Connectable conductor cross section solid-core (mm²) : 1 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 16 mm²
