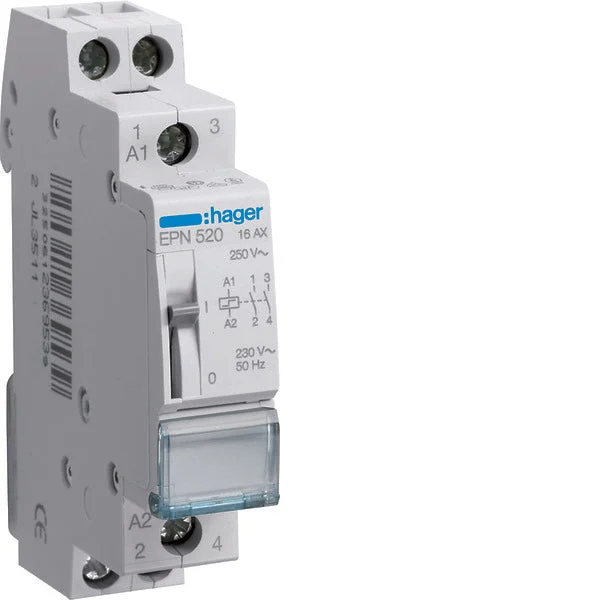

This Hager EPN impulse relay is suitable for controlling lighting groups up to 16A. In addition, the EPN impulse relay features contact status indication and manual switching. The auxiliary elements can be easily mounted without tools. This Hager impulse relay has 2 make contacts. Hager EPN impulse relays are available in several variations.
Specifications
Function : Mechanical switch
Mounting method : DIN rail
Width in number of modular spacings : 17.5
Built-in depth (mm) : 63
Number of contacts as normally open contact : 2
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Control voltage 1 (V) : 230 V to 230 V
Type of control voltage 1 : AC
Frequency control voltage 1 (Hz) : 50 Hz to 60 Hz
Control voltage 2 (V) : 110 V to 110 V
Type of control voltage 2 : DC
Frequency control voltage 2 (Hz) : 50 Hz to 60 Hz
Rated switch current (A) : 16
Supply voltage (V) : 250 V to 250 V
Voltage type of supply voltage : AC
Max. incandescent lamp load (W) : 1800
Max. load fluorescent lamp (VA) : 800
Max. load fluorescent lamp (Duo circuit) (VA) : 1600
Max. load fluorescent lamp (parallel compensated) (VA) : 900
Max. switching current (cos phi = 0.6) (A) : 16
Manual override : Yes
